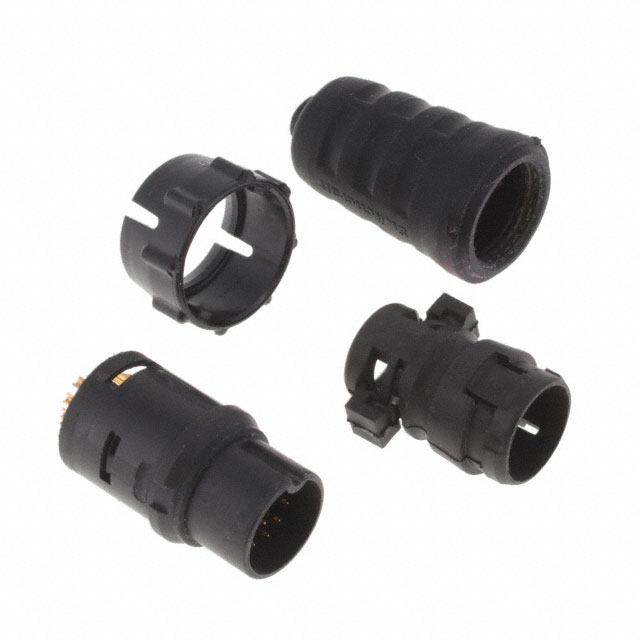

EN3C16M26SX

Active

Switchcraft Inc.

CONN PLUG MALE 16P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEN3 Contact size 26 Part Numbering Datasheet

EN3C16M26SX

Active

Switchcraft Inc.

CONN PLUG MALE 16P GOLD SLDR CUP

Deep-Dive with AI

DocumentsEN3 Contact size 26 Part Numbering Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C16M26SX	EN3C16 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A	3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	16	16
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	250 VAC	250 VAC

EN3C16 Series

CONN PLUG MALE 16P GOLD SLDR CUP

Part	Contact Finish - Mating	Applications	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color	Current Rating (Amps)	Fastening Type	Contact Material	Orientation	Number of Positions	Ingress Protection	Shielding	Primary Material	Insert Material	Voltage Rating	Connector Type	Material Flammability Rating	Features
Switchcraft Inc. EN3C16M26SX	Gold	General Purpose, Instrumentation, Marine, Medical	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Thermoplastic	65 °C	-40 °C	Free Hanging (In-Line)	Black	3 A	Bayonet Lock	Copper Alloy	Keyed	16	IP66/IP68	Unshielded	Plastic	Elastomer	250 VAC	Male Pins, Plug	UL94 V-0	Backshell, Cable Clamp, Coupling Nut
Switchcraft Inc. EN3C16M26X	Gold	General Purpose, Instrumentation, Marine, Medical	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Thermoplastic	65 °C	-40 °C	Free Hanging (In-Line)	Black	3 A	Bayonet Lock	Copper Alloy	Keyed	16	IP66/IP68	Unshielded	Plastic	Elastomer	250 VAC	Male Pins, Plug	UL94 V-0	Backshell, Cable Clamp, Coupling Nut
Switchcraft Inc. EN3C16F26SX	Gold	General Purpose, Instrumentation, Marine, Medical	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Thermoplastic	65 °C	-40 °C	Free Hanging (In-Line)	Black	3 A	Bayonet Lock	Copper Alloy	Keyed	16	IP66/IP68	Unshielded	Plastic	Elastomer	250 VAC	Female Sockets, Plug	UL94 V-0	Backshell, Cable Clamp, Coupling Nut
Switchcraft Inc. EN3C16F26X	Gold	General Purpose, Instrumentation, Marine, Medical	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Thermoplastic	65 °C	-40 °C	Free Hanging (In-Line)	Black	3 A	Bayonet Lock	Copper Alloy	Keyed	16	IP66/IP68	Unshielded	Plastic	Elastomer	250 VAC	Female Sockets, Plug	UL94 V-0	Backshell, Cable Clamp, Coupling Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.11
		10	$ 16.29
		25	$ 15.50

Description

General part information

EN3C16 Series

16 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

EN3 Contact size 26 Part Numbering

Datasheet
