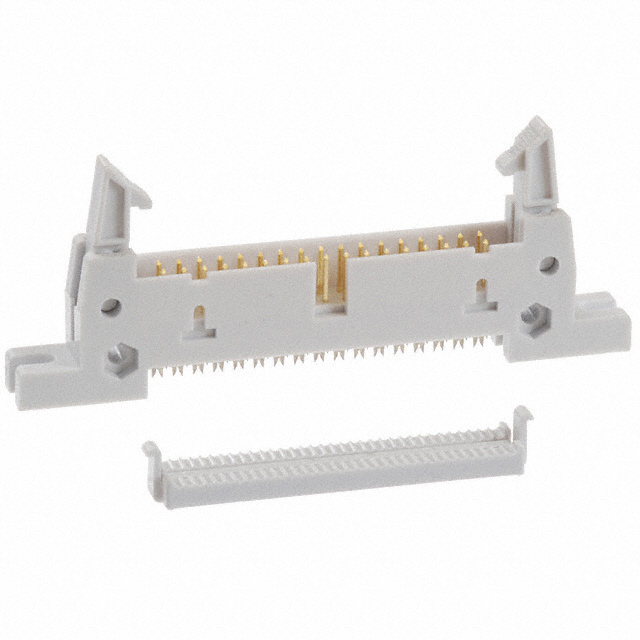

AWH34G-E232-IDC-R

Obsolete

Assmann WSW Components

CONN HEADER 34POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AWH34G-E232-IDC-R

Obsolete

Assmann WSW Components

CONN HEADER 34POS IDC GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AWH34G-E232-IDC-R

Cable Termination	IDC
Color	Gray
Connector Type	Header
Contact Finish	Gold
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Feed Through
Number of Positions	34
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

AWH 34G Series

Part	Contact Type	Pitch [x]	Pitch [x]	Connector Type	Features	Row Spacing [x]	Row Spacing	Fastening Type	Color	Wire Type	Number of Rows	Contact Finish	Cable Termination	Number of Positions	Mounting Type	Contact Shape	Shrouding	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Style	Current Rating (Amps)	Termination	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Material	Contact Finish Thickness - Mating	Insulation Color	Insulation Material	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Assmann WSW Components AWH34G-E232-IDC-R	Male Pin	2.54 mm	0.1 in	Header	Feed Through	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	Gray	Ribbon Cable	2	Gold	IDC	34
Assmann WSW Components AWH 34G-0222-IDC	Male Pin	2.54 mm	0.1 in	Header	Feed Through	0.1 in	2.54 mm	Latch Lock/Eject Hooks Short	Gray	Ribbon Cable	2	Gold	IDC	34	Free Hanging (In-Line)
Assmann WSW Components AWH34G-E202-IDC-R	Male Pin	2.54 mm	0.1 in	Header	Feed Through	0.1 in	2.54 mm		Gray	Ribbon Cable	2	Gold	IDC	34
Assmann WSW Components AWH 34G-E232-IDC	Male Pin	2.54 mm	0.1 in	Header	Feed Through	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	Gray	Ribbon Cable	2	Gold	IDC	34
Assmann WSW Components AWH 34G-E222-IDC	Male Pin	2.54 mm	0.1 in	Header	Feed Through	0.1 in	2.54 mm	Latch Lock/Eject Hooks Short	Gray	Ribbon Cable	2	Gold	IDC	34
Assmann WSW Components AWH34G-0232-T-R	Male Pin			Header	Keying Slot			Latch Lock/Eject Hooks Long			2			34	Through Hole	Square	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	Tin	0.13 in	3.3 mm	Board to Cable/Wire	3 A	Solder	Gold	0.1 in	2.54 mm	All	Brass	Flash	Gray	Polybutylene Terephthalate (PBT) Glass Filled	17 mm	0.669 "	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AWH 34G Series

34 Position Rectangular Header Connector IDC Gold
