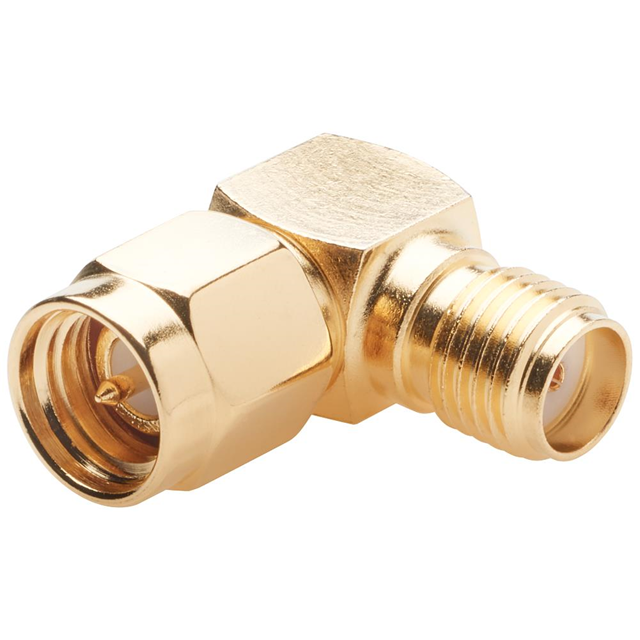

Specification	6GK58981CV004AA0

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Center Gender	Male, Female
Conversion Type	Same Series
Convert From (Adapter End)	Male Pin, SMA Plug
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	SMA Jack
Fastening Type	Threaded
Frequency - Max	6000 MHz
Impedance	50 Ohm
Ingress Protection Description	Dust Tight
Ingress Protection IP Rating	IP61
Mounting Type	Right Angle, Free Hanging (In-Line)
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Style	Right Angle

6GK58981 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Style	Adapter Series	Frequency - Max	Adapter Type	Center Gender	Convert From (Adapter End)	Mounting Type	Ingress Protection IP Rating	Ingress Protection Description	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Impedance	Conversion Type	Fastening Type
Siemens 6GK58981CV004AA0	-20 °C	80 °C	Right Angle	SMA to SMA	6000 MHz	Plug to Jack	Female Male	Male Pin SMA Plug	Free Hanging (In-Line) Right Angle	IP61	Dust Tight	Female Socket	SMA Jack	50 Ohm	Same Series	Threaded
