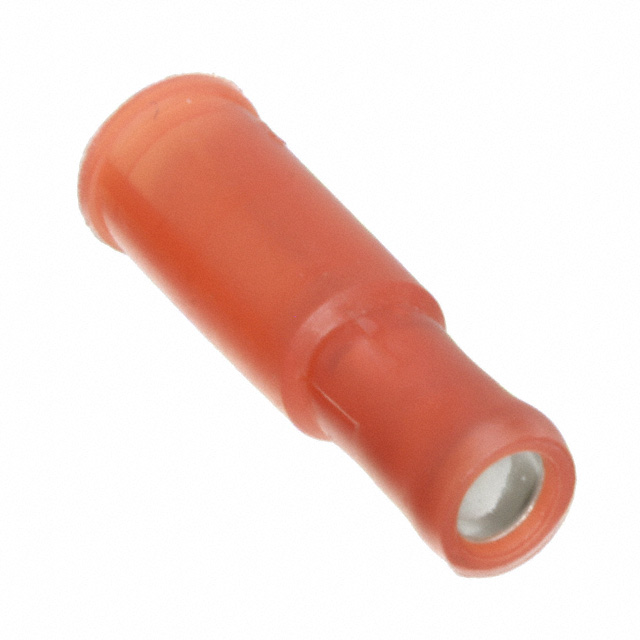

141456-1

Active

TE Connectivity AMP Connectors

SHUR PLUG RCPT 22 16 AWG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

SHUR PLUG RCPT 22 16 AWG

Technical Specifications

Parameters and characteristics for this part

Specification	141456-1

Color	Red
Contact Finish	Tin
Contact Material	Brass
Insulation	Fully Insulated
Insulation Diameter [diameter]	3.3 mm
Insulation Diameter [diameter]	0.13 in
Length - Overall [x]	25 mm
Length - Overall [x]	0.984 in
Material - Insulation	Nylon, Polyamide (PA)
Terminal Type	Female, Receptacle (Socket)
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	16 AWG

SHUR PLUG RCPT 22 16 AWG

Part	Length - Overall [x]	Length - Overall [x]	Material - Insulation	Contact Finish	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Color	Terminal Type
TE Connectivity AMP Connectors 141456-1	25 mm	0.984 in	Nylon, Polyamide (PA)	Tin	Fully Insulated	20 AWG	16 AWG	Crimp	Brass	3.3 mm	0.13 in	Red	Female, Receptacle (Socket)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.79

General part information

Terminal Connector Female, Receptacle (Socket) 15.5-20 AWG Crimp Tin
