842-008-524-102
ActiveEDAC Inc.

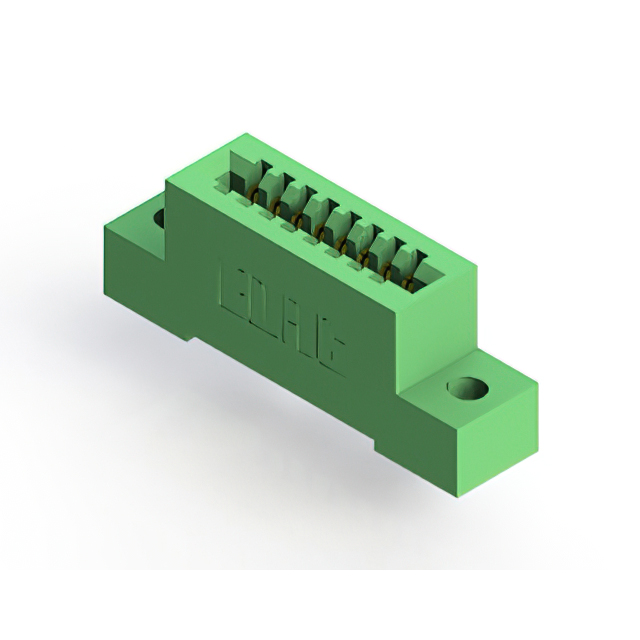

CONN EDGE SINGLE FML 8POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-008-524-102
ActiveEDAC Inc.
CONN EDGE SINGLE FML 8POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-008-524-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
842-008 Series
| Part | Termination | Number of Rows | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Pitch [x] | Pitch [x] | Number of Positions | Mounting Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Contact Type | Termination Rows | Card Type | Contact Finish | Color | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 1 | Female | 125 °C | -40 °C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2.54 mm | 0.1 in | 8 | Through Hole | Single | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | 1 | Non Specified - Single Edge | Gold | Green | 8 | 8 | 8 |
EDAC Inc. | Solder | 1 | Female | 125 °C | -40 °C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2.54 mm | 0.1 in | 8 | Through Hole | Single | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | 1 | Non Specified - Single Edge | Gold | Green | 8 | 8 | 8 |
EDAC Inc. | Wire Wrap | 1 | Female | 125 °C | -40 °C | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2.54 mm | 0.1 in | 8 | Through Hole | Single | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | 1 | Non Specified - Single Edge | Gold | Green | 8 | 8 | 8 |
EDAC Inc. | Solder | 1 | Female | 125 °C | -40 °C | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 2.54 mm | 0.1 in | 8 | Through Hole | Single | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | 1 | Non Specified - Single Edge | Gold | Green | 8 | 8 | 8 |
EDAC Inc. | Solder | 1 | Female | 125 °C | -40 °C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2.54 mm | 0.1 in | 8 | Through Hole Right Angle | Single | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | 1 | Non Specified - Single Edge | Gold | Green | 8 | 8 | 8 |
EDAC Inc. | Wire Wrap | 1 | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | 8 | Through Hole | Single | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | 1 | Non Specified - Single Edge | Gold | Green | 8 | 8 | 8 | |||
EDAC Inc. | Solder Eyelet(s) | 1 | Female | 125 °C | -40 °C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2.54 mm | 0.1 in | 8 | Through Hole | Single | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | 1 | Non Specified - Single Edge | Gold | Green | 8 | 8 | 8 |
EDAC Inc. | Solder | 1 | Female | 125 °C | -40 °C | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2.54 mm | 0.1 in | 8 | Through Hole | Single | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | 1 | Non Specified - Single Edge | Gold | Green | 8 | 8 | 8 |
EDAC Inc. | Solder | 1 | Female | 125 °C | -40 °C | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2.54 mm | 0.1 in | 8 | Through Hole | Single | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | 1 | Non Specified - Single Edge | Gold | Green | 8 | 8 | 8 |
EDAC Inc. | Solder Eyelet(s) | 1 | Female | 125 °C | -40 °C | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2.54 mm | 0.1 in | 8 | Through Hole | Single | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | 1 | Non Specified - Single Edge | Gold | Green | 8 | 8 | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 54.70 | |
Description
General part information
842-008 Series
8 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
