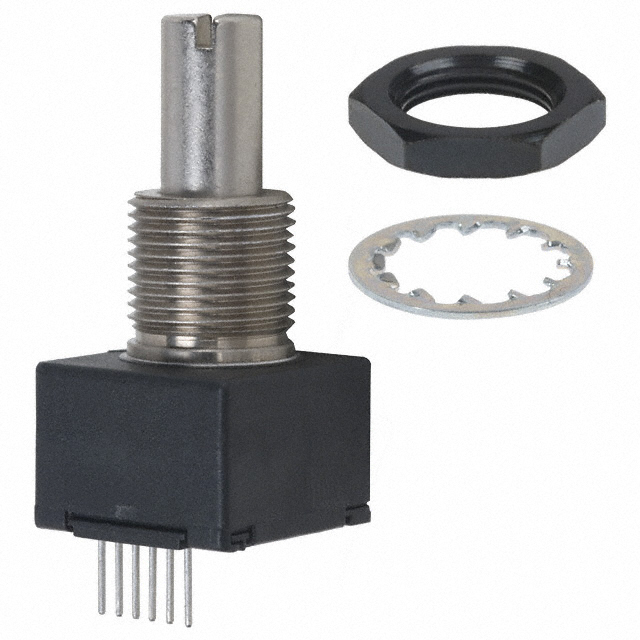

EM14R0D-R20-L032N

Active

Bourns Inc.

ROTARY ENCODER OPTICAL 32PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER OPTICAL 32PPR

Technical Specifications

Parameters and characteristics for this part

Part	Orientation	Encoder Type	Termination Style	Rotational Life (Cycles Min)	Pulses per Revolution	Output Type	Actuator Type [diameter]	Actuator Type	Mounting Type
Bourns Inc. EM14R0D-M20-L016N	Vertical	Optical	PC Pin	1M	16	Quadrature (Incremental)	6 mm	Flatted End	Panel PCB Through Hole
Bourns Inc. EM14R0D-M25-L064S	Vertical	Optical	PC Pin	1M	64	Quadrature (Incremental)	6 mm	Flatted End	Panel PCB Through Hole
Bourns Inc. EM14R0D-R20-L032N	Vertical	Optical	PC Pin	1M		Quadrature (Incremental)		6mm Dia Slotted End	Panel PCB Through Hole
Bourns Inc. EM14R0D-R20-L032S	Vertical	Optical	PC Pin	1M		Quadrature (Incremental)		6mm Dia Slotted End	Panel PCB Through Hole
Bourns Inc. EM14R0D-M25-L064N	Vertical	Optical	PC Pin	1M	64	Quadrature (Incremental)	6 mm	Flatted End	Panel PCB Through Hole
Bourns Inc. EM14R0D-M20-L064S	Vertical	Optical	PC Pin	1M	64	Quadrature (Incremental)	6 mm	Flatted End	Panel PCB Through Hole
Bourns Inc. EM14R0D-R20-R016S	Right Angle	Optical	PC Pin	1M	16	Quadrature (Incremental)		6mm Dia Slotted End	Panel PCB Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Optical 32 Quadrature (Incremental) Vertical
