SDI36-15-UDC-P6R

Active

CUI Inc.

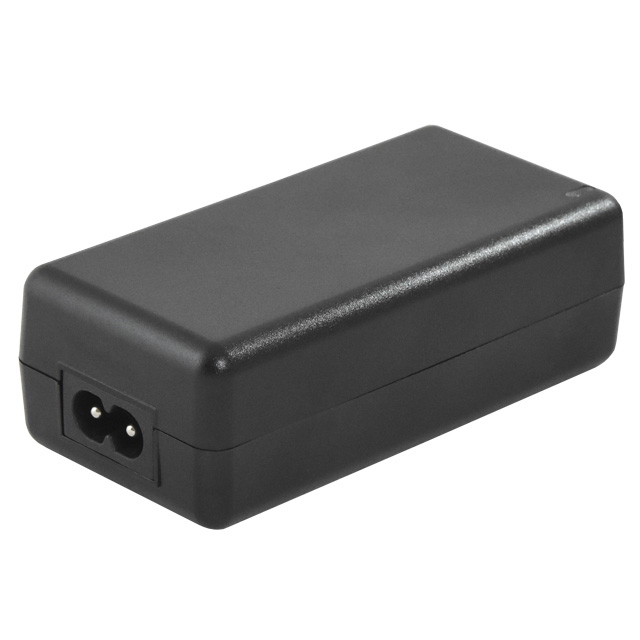

AC/DC DESKTOP ADAPTER 15V 36W

Deep-Dive with AI

Search across all available documentation for this part.

SDI36-15-UDC-P6R

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 15V 36W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDI36-15-UDC-P6R

Applications	ITE (Commercial)
Approval Agency	FCC, EN, CSA, IEC, UL, PSE, CB Scheme
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2.4 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	North America
Size / Dimension [x]	99 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Standard Number	C22.2 No. 60950-1, 55024, 62368-1, 60950-1, 61000-3-3, 55032 Class B, 61000-3-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

SDI36 Series

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Input Type	No Load Power Consumption [Max]	Current - Output (Max) [Max]	Standard Number	Operating Temperature [Max]	Approval Agency	Input Connector	Output Connector [x]	Output Connector [diameter]	Output Connector	Efficiency	Cord Length	Cord Length	Region Utilized	Form	Voltage - Output	Output Connector [z]	Output Connector [y]
CUI Inc. SDI36-48-UC-P6R	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	36 W	Positive Center	90 VAC	264 VAC	ITE (Commercial)	Cord	75 mW	750 mA	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	40 °C	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	CoC Tier 2 Level VI	1.5 m	59 in	North America	Desktop (Class I)	48 V
CUI Inc. SDI36-48-UDC-P5	33 mm	1.97 "	99 mm	3.9 "	50 mm	1.3 "	36 W	Positive Center	90 VAC	264 VAC	ITE (Commercial)	Cord	75 mW	750 mA	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	40 °C	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C8	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	1.5 m	59 in	North America	Desktop (Class II)	48 V
CUI Inc. SDI36-5-UD-P5	33 mm	1.97 "	99 mm	3.9 "	50 mm	1.3 "	25 W	Positive Center	90 VAC	264 VAC	ITE (Commercial)	Cord	75 mW	5 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	40 °C	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C8	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	1 m	39.4 "	International	Desktop (Class II)	5 V
CUI Inc. SDI36-48-U2-P5R	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	36 W	Positive Center	90 VAC	264 VAC	ITE (Commercial)	Cord	75 mW	750 mA	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	40 °C	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	2.1 mm		Barrel Plug R/A	CoC Tier 2 Level VI	1.5 m	59 in	Europe	Desktop (Class I)	48 V	9.5 mm	5.5 mm
CUI Inc. SDI36-5-U-P6R	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	25 W	Positive Center	90 VAC	264 VAC	ITE (Commercial)	Cord	75 mW	5 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	40 °C	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	CoC Tier 2 Level VI	1 m	39.4 "	International	Desktop (Class I)	5 V
CUI Inc. SDI36-12-U-P5	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	36 W	Positive Center	90 VAC	264 VAC	ITE (Commercial)	Cord	75 mW	3 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	40 °C	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	1.5 m	59 in	International	Desktop (Class I)	12 V
CUI Inc. SDI36-12-UC-P5R	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	36 W	Positive Center	90 VAC	264 VAC	ITE (Commercial)	Cord	75 mW	3 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	40 °C	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	2.1 mm		Barrel Plug R/A	CoC Tier 2 Level VI	1.5 m	59 in	North America	Desktop (Class I)	12 V	9.5 mm	5.5 mm
CUI Inc. SDI36-15-UD2-P5	33 mm	1.97 "	99 mm	3.9 "	50 mm	1.3 "	36 W	Positive Center	90 VAC	264 VAC	ITE (Commercial)	Cord	75 mW	2.4 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	40 °C	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C8	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	1.5 m	59 in	Europe	Desktop (Class II)	15 VDC
CUI Inc. SDI36-24-U2-P6R	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	36 W	Positive Center	90 VAC	264 VAC	ITE (Commercial)	Cord	75 mW	1.5 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	40 °C	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	CoC Tier 2 Level VI	1.5 m	59 in	Europe	Desktop (Class I)	24 V
CUI Inc. SDI36-15-UDC-P6R	33 mm	1.97 "	99 mm	3.9 "	50 mm	1.3 "	36 W	Positive Center	90 VAC	264 VAC	ITE (Commercial)	Cord	75 mW	2.4 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	40 °C	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C8	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	CoC Tier 2 Level VI	1.5 m	59 in	North America	Desktop (Class II)	15 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	240	$ 18.34

Description

General part information

SDI36 Series

15V 36 W AC/DC External Desktop (Class II) Adapter Cord Input

Documents

Technical documentation and resources

No documents available
