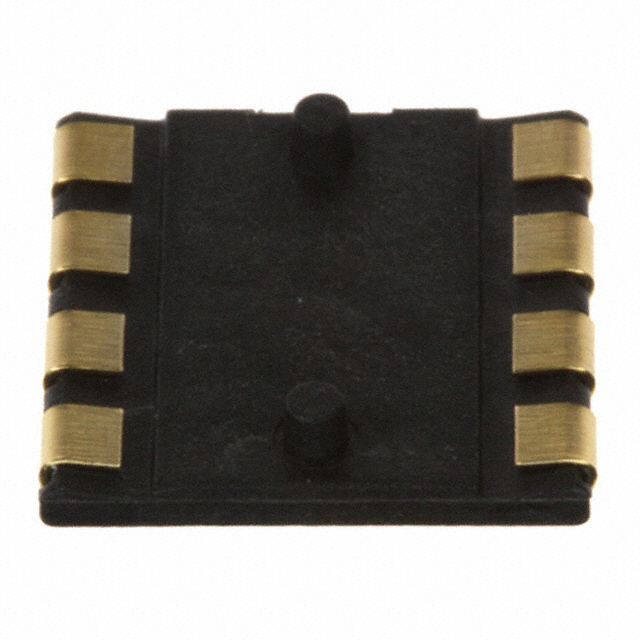

70AAJ-4-F1

Active

Bourns Inc.

CONN SPRING MOD FEMALE 4POS SMD

Search across all available documentation for this part.

Active

Bourns Inc.

CONN SPRING MOD FEMALE 4POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Number of Contacts	Connector Type	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Material	Contact Finish	Number of Contacts [custom]
Bourns Inc. 70AAJ-3-F1G	2.54 mm	0.1 in	3	Compression Contact Female	Surface Mount	1	0.76 Ám	30 Áin	Copper Alloy	Copper
Bourns Inc. 70AAJ-3-F1	2.54 mm	0.1 in	3	Compression Contact Female	Surface Mount	1	0.76 Ám	30 Áin	Copper Alloy	Gold
Bourns Inc. 70AAJ-4-F1	2.54 mm	0.1 in		Compression Contact Female	Surface Mount	1	0.76 Ám	30 Áin	Copper Alloy	Gold	4
Bourns Inc. 70AAJ-6-F0G	2.54 mm	0.1 in		Compression Contact Female	Surface Mount	1	0.76 Ám	30 Áin	Copper Alloy	Gold	6
Bourns Inc. 70AAJ-2-F1	2.54 mm	0.1 in		Compression Contact Female	Surface Mount	1	0.76 Ám	30 Áin	Copper Alloy	Gold
Bourns Inc. 70AAJ-2-F0	2.54 mm	0.1 in		Compression Contact Female	Surface Mount	1	0.76 Ám	30 Áin	Copper Alloy	Gold
Bourns Inc. 70AAJ-6-F0	2.54 mm	0.1 in		Compression Contact Female	Surface Mount	1	0.76 Ám	30 Áin	Copper Alloy	Gold	6
Bourns Inc. 70AAJ-4-F0	2.54 mm	0.1 in		Compression Contact Female	Surface Mount	1	0.76 Ám	30 Áin	Copper Alloy	Gold	4
Bourns Inc. 70AAJ-6-F1G	2.54 mm	0.1 in		Compression Contact Female	Surface Mount	1	0.76 Ám	30 Áin	Copper Alloy	Gold	6
Bourns Inc. 70AAJ-6-F1	2.54 mm	0.1 in		Compression Contact Female	Surface Mount	1	0.76 Ám	30 Áin	Copper Alloy	Gold	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Spring Compression Contact, Female Connector Surface Mount
