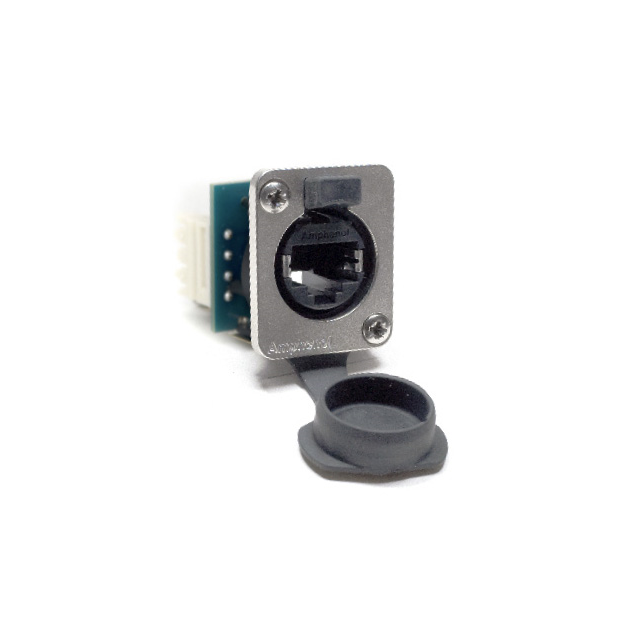

RJXS8FG6110

Active

Amphenol Sine Systems Corp

XLRNET D TYPE IDC 110 TERMINALS

Deep-Dive with AI

Search across all available documentation for this part.

RJXS8FG6110

Active

Amphenol Sine Systems Corp

XLRNET D TYPE IDC 110 TERMINALS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJXS8FG6110

Applications	Power over Ethernet+ (PoE+), 10G Base-T
Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic, Glass Filled
LED Color	Does Not Contain LED
Mounting Type	Panel Mount, Flange
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Shield Material	Thermoplastic, Glass Filled
Shielding	Shielded
Tab Direction	User Selectable
Termination	IDC, Color Coded Block

RJXS8 Series

Part	Shielding	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	LED Color	Applications	Shield Material	Orientation	Number of Rows	Contact Finish	Housing Material	Tab Direction	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Mounting Type	Termination	Orientation	Height Above Board	Height Above Board
Amphenol Sine Systems Corp RJXS8FG6110	Shielded	Phosphor Bronze	Jack	-40 °C	80 C	Does Not Contain LED	10G Base-T Power over Ethernet+ (PoE+)	Thermoplastic Glass Filled	Straight	1	Gold	Thermoplastic Glass Filled	User Selectable	50 µin	1.27 µm	1	Flange Panel Mount	Color Coded Block IDC
Amphenol Sine Systems Corp RJXS8FD3VB	Shielded	Phosphor Bronze	Jack	-40 °C	80 C	Does Not Contain LED	10/100 Base-T AutoMDIX Power over Ethernet+ (PoE+)	Thermoplastic Glass Filled	Vertical	1	Gold	Thermoplastic Glass Filled	User Selectable	50 µin	1.27 µm	1	Panel Mount Through Hole	Solder
Amphenol Sine Systems Corp RJXS8FG5I	Shielded	Phosphor Bronze	Jack	-40 °C	80 C	Does Not Contain LED	10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+)	Thermoplastic Glass Filled	Straight	1	Gold	Thermoplastic Glass Filled	User Selectable	50 µin	1.27 µm	1	Flange Panel Mount	Color Coded Block IDC
Amphenol Sine Systems Corp RJXS8FD3HB	Shielded	Phosphor Bronze	Jack	-40 °C	80 C	Does Not Contain LED	10/100 Base-T AutoMDIX Power over Ethernet+ (PoE+)	Thermoplastic Glass Filled		1	Gold	Thermoplastic Glass Filled	Down	50 µin	1.27 µm	1	Panel Mount Through Hole	Solder	90 °	1.26 "	32 mm
Amphenol Sine Systems Corp RJXS8FD5I	Shielded	Phosphor Bronze	Jack	-40 °C	80 C	Does Not Contain LED	10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+)	Thermoplastic Glass Filled	Straight	1	Gold	Thermoplastic Glass Filled	User Selectable	50 µin	1.27 µm	1	Flange Panel Mount	Color Coded Block IDC
Amphenol Sine Systems Corp RJXS8FD6HB	Shielded	Phosphor Bronze	Jack	-40 °C	80 C	Does Not Contain LED	10G Base-T Power over Ethernet+ (PoE+)	Thermoplastic Glass Filled		1	Gold	Thermoplastic Glass Filled	Down	50 µin	1.27 µm	1	Panel Mount Through Hole	Solder	90 °	1.26 "	32 mm
Amphenol Sine Systems Corp RJXS8FD5VB	Shielded	Phosphor Bronze	Jack	-40 °C	80 C	Does Not Contain LED	10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+)	Thermoplastic Glass Filled	Vertical	1	Gold	Thermoplastic Glass Filled	User Selectable	50 µin	1.27 µm	1	Panel Mount Through Hole	Solder
Amphenol Sine Systems Corp RJXS8FD6110	Shielded	Phosphor Bronze	Jack	-40 °C	80 C	Does Not Contain LED	10G Base-T Power over Ethernet+ (PoE+)	Thermoplastic Glass Filled	Straight	1	Gold	Thermoplastic Glass Filled	User Selectable	50 µin	1.27 µm	1	Flange Panel Mount	Color Coded Block IDC
Amphenol Sine Systems Corp RJXS8FD5110	Shielded	Phosphor Bronze	Jack	-40 °C	80 C	Does Not Contain LED	10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+)	Thermoplastic Glass Filled	Straight	1	Gold	Thermoplastic Glass Filled	User Selectable	50 µin	1.27 µm	1	Flange Panel Mount	Color Coded Block IDC
Amphenol Sine Systems Corp RJXS8FG6VB	Shielded	Phosphor Bronze	Jack	-40 °C	80 C	Does Not Contain LED	10G Base-T Power over Ethernet+ (PoE+)	Thermoplastic Glass Filled	Vertical	1	Gold	Thermoplastic Glass Filled	User Selectable	50 µin	1.27 µm	1	Panel Mount Through Hole	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.17
		10	$ 21.78
		25	$ 21.39

Description

General part information

RJXS8 Series

1 Port JackPanel Mount, Flange 10G Base-T, Power over Ethernet+ (PoE+)

Documents

Technical documentation and resources

No documents available
