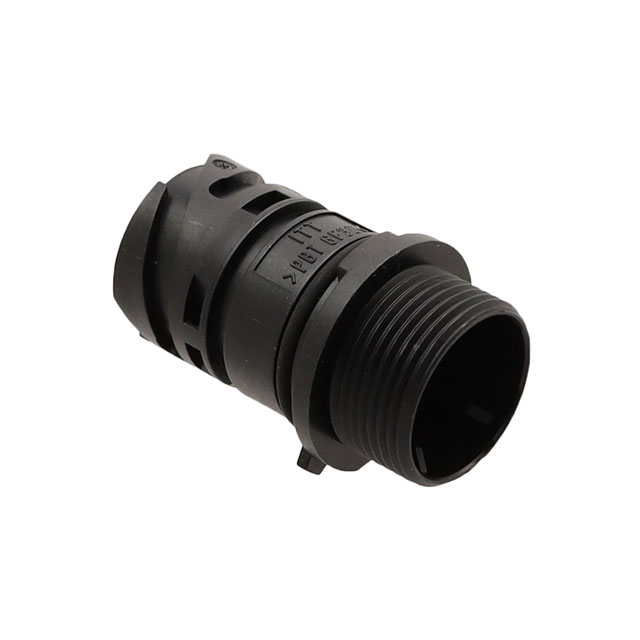

APD-7SP-H

Active

ITT Cannon, LLC

CONN RCPT HSNG MALE 1POS PNL MT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT HSNG MALE 1POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	APD-7SP-H

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Feature	Bulkhead
Note	Contacts Not Included
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	7
Shell Material	Polybutylene Terephthalate (PBT), Glass Filled
Shielding	Unshielded
Type	For Male Pins

Part	Mounting Feature	Number of Positions	Insert Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Type	Shielding	Fastening Type	Orientation	Housing Color	Note	Includes	Shell Material	Contact Shape	Ingress Protection	Mounting Type	Features
ITT Cannon, LLC APD-7SP-H	Bulkhead	1	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Housing	125 °C	-40 °C	Crimp	For Male Pins	Unshielded	Bayonet Lock	7	Black	Contacts Not Included	1 Connector 1 O-Ring	Polybutylene Terephthalate (PBT) Glass Filled	Circular	IP67 - Dust Tight Waterproof
ITT Cannon, LLC APD-7BS-H		1	Polybutylene Terephthalate (PBT) Glass Filled	Plug Housing	125 °C	-40 °C	Crimp	For Female Sockets	Unshielded	Bayonet Lock	7	Black	Contacts Not Included		Polybutylene Terephthalate (PBT) Glass Filled	Circular	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Coupling Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 (Power) Position Circular Connector Receptacle Housing Panel Mount
