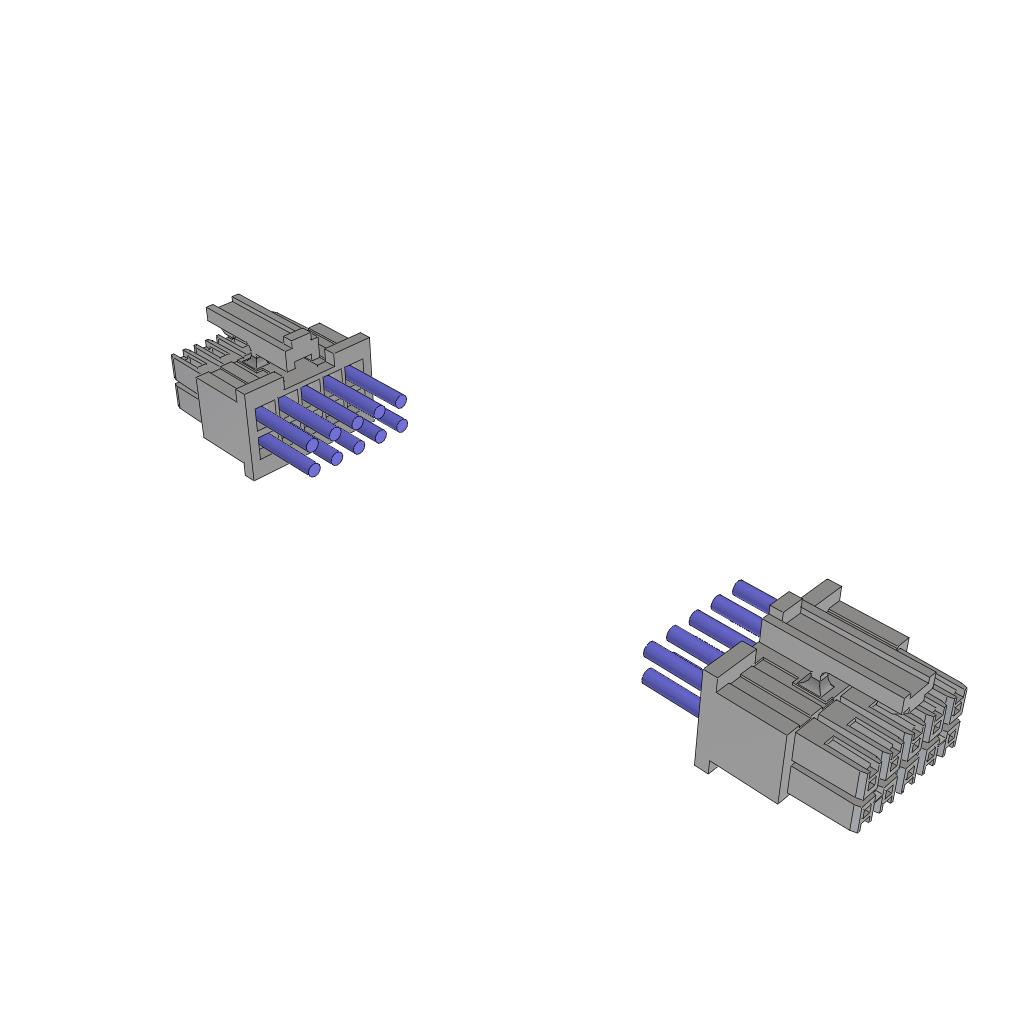

MMSD-05-20-L-09.00-D-K-LUS - MMSD-05-20-L-09.00-D-K-LUS

MMSD-05-20-L-09.00-D-K-LUS

Active
Samtec Inc.

.100" MINI MATE DOUBLE ROW DISC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMMSD DatasheetIPD1 Series Other Related Documents 03+1
MMSD-05-20-L-09.00-D-K-LUS - MMSD-05-20-L-09.00-D-K-LUS

MMSD-05-20-L-09.00-D-K-LUS

Active
Samtec Inc.

.100" MINI MATE DOUBLE ROW DISC

Deep-Dive with AI

DocumentsMMSD DatasheetIPD1 Series Other Related Documents 03+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMMSD-05-20-L-09.00-D-K-LUS
Cable TerminationCrimp
Connector TypeSocket to Socket
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesLatch Lock, Polarizing Key
Length228.6 mm
Length9 in
Length0.75 ft
Number of Positions10
Number of Rows2
Pitch - Connector0.1 in
Pitch - Connector2.54 mm
ShieldingUnshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 5.91

Description

General part information

MMSD-05 Series

10 Position Cable Assembly Rectangular Socket to Socket 0.750' (228.60mm, 9.00")
