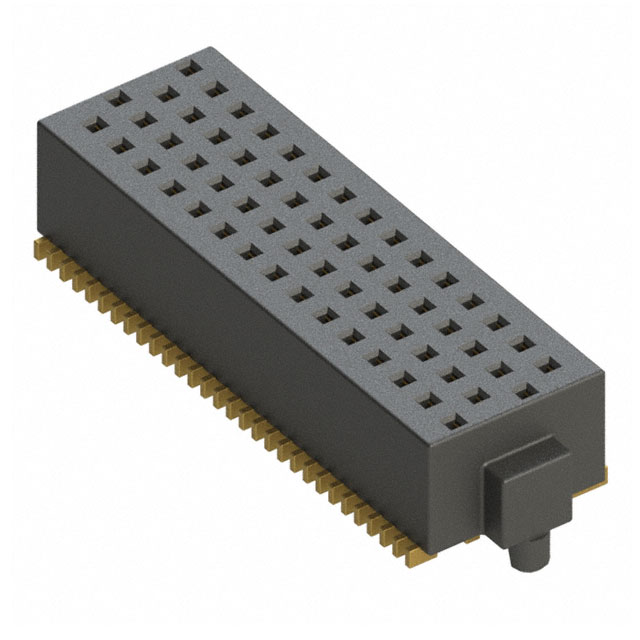

SOLC-115-02-S-Q-A-K

Active

Samtec Inc.

CONN RCPT 60POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet .050" FOURRAY™ Quad Row Tiger Buy™ Socket Strip +1

SOLC-115-02-S-Q-A-K

Active

Samtec Inc.

CONN RCPT 60POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet .050" FOURRAY™ Quad Row Tiger Buy™ Socket Strip +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SOLC-115-02-S-Q-A-K

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2.4 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height [z]	0.16 in
Insulation Height [z]	4.06 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	60
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

SOLC-115 Series

Part	Mounting Type	Contact Material	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Shape	Contact Finish - Mating	Features	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Height [z]	Insulation Height [z]	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Insulation Material	Current Rating (Amps)
Samtec Inc. SOLC-115-02-L-Q-K-TR	Surface Mount	Phosphor Bronze	Solder	10 çin	0.25 çm	UL94 V-0	Square	Gold	Pick and Place	0.05 in	1.27 mm	Receptacle	0.16 in	4.06 mm	Push-Pull	60	-55 °C	125 °C	Gold	All	0.05 in	1.27 mm	Forked	3 µin	0.076 µm	Black	Liquid Crystal Polymer (LCP)	2.4 A
Samtec Inc. SOLC-115-02-L-Q-A-K-TR	Surface Mount	Phosphor Bronze	Solder	10 çin	0.25 çm	UL94 V-0	Square	Gold	Board Guide Pick and Place	0.05 in	1.27 mm	Receptacle	0.16 in	4.06 mm	Push-Pull	60	-55 °C	125 °C	Gold	All	0.05 in	1.27 mm	Forked	3 µin	0.076 µm	Black	Liquid Crystal Polymer (LCP)	2.4 A
Samtec Inc. SOLC-115-02-F-Q-A-K	Surface Mount	Phosphor Bronze	Solder	3 µin	0.076 µm	UL94 V-0	Square	Gold	Board Guide Pick and Place	0.05 in	1.27 mm	Receptacle	0.16 in	4.06 mm	Push-Pull	60	-55 °C	125 °C	Gold	All	0.05 in	1.27 mm	Forked	3 µin	0.076 µm	Black	Liquid Crystal Polymer (LCP)	2.4 A
Samtec Inc. SOLC-115-02-L-Q-A-P	Surface Mount	Phosphor Bronze	Solder	10 çin	0.25 çm	UL94 V-0	Square	Gold	Board Guide Pick and Place	0.05 in	1.27 mm	Receptacle	0.16 in	4.06 mm	Push-Pull	60	-55 °C	125 °C	Gold	All	0.05 in	1.27 mm	Forked	3 µin	0.076 µm	Black	Liquid Crystal Polymer (LCP)	2.4 A
Samtec Inc. SOLC-115-02-S-Q-A-K	Surface Mount	Phosphor Bronze	Solder	30 Áin	0.76 Ám	UL94 V-0	Square	Gold	Board Guide Pick and Place	0.05 in	1.27 mm	Receptacle	0.16 in	4.06 mm	Push-Pull	60	-55 °C	125 °C	Gold	All	0.05 in	1.27 mm	Forked	3 µin	0.076 µm	Black	Liquid Crystal Polymer (LCP)	2.4 A
Samtec Inc. SOLC-115-02-L-Q-LC-K	Surface Mount	Phosphor Bronze	Solder	10 çin	0.25 çm	UL94 V-0	Square	Gold	Board Lock Pick and Place	0.05 in	1.27 mm	Receptacle	0.16 in	4.06 mm	Push-Pull	60	-55 °C	125 °C	Gold	All	0.05 in	1.27 mm	Forked	3 µin	0.076 µm	Black	Liquid Crystal Polymer (LCP)	2.4 A
Samtec Inc. SOLC-115-02-L-Q-A-K	Surface Mount	Phosphor Bronze	Solder	10 çin	0.25 çm	UL94 V-0	Square	Gold	Board Guide Pick and Place	0.05 in	1.27 mm	Receptacle	0.16 in	4.06 mm	Push-Pull	60	-55 °C	125 °C	Gold	All	0.05 in	1.27 mm	Forked	3 µin	0.076 µm	Black	Liquid Crystal Polymer (LCP)	2.4 A
Samtec Inc. SOLC-115-02-L-Q-P-TR	Surface Mount	Phosphor Bronze	Solder	10 çin	0.25 çm	UL94 V-0	Square	Gold	Pick and Place	0.05 in	1.27 mm	Receptacle	0.16 in	4.06 mm	Push-Pull	60	-55 °C	125 °C	Gold	All	0.05 in	1.27 mm	Forked	3 µin	0.076 µm	Black	Liquid Crystal Polymer (LCP)	2.4 A
Samtec Inc. SOLC-115-02-F-Q-A-TR	Surface Mount	Phosphor Bronze	Solder	3 µin	0.076 µm	UL94 V-0	Square	Gold	Board Guide	0.05 in	1.27 mm	Receptacle	0.16 in	4.06 mm	Push-Pull	60	-55 °C	125 °C	Gold	All	0.05 in	1.27 mm	Forked	3 µin	0.076 µm	Black	Liquid Crystal Polymer (LCP)	2.4 A
Samtec Inc. SOLC-115-02-F-Q-LC	Surface Mount	Phosphor Bronze	Solder	3 µin	0.076 µm	UL94 V-0	Square	Gold		0.05 in	1.27 mm	Receptacle	0.16 in	4.06 mm	Push-Pull	60	-55 °C	125 °C	Gold	All	0.05 in	1.27 mm	Forked	3 µin	0.076 µm	Black	Liquid Crystal Polymer (LCP)	2.4 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 13.89
		10	$ 13.15
		25	$ 12.89
