BALF-ATM-01E3

Active

STMicroelectronics

50 OHMS / MATCHED TO ATSAMR21E18 BALUN TRANSFORMER, WITH INTEGRATED HARMONIC FILTER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDS12158 +4

BALF-ATM-01E3

Active

STMicroelectronics

50 OHMS / MATCHED TO ATSAMR21E18 BALUN TRANSFORMER, WITH INTEGRATED HARMONIC FILTER

Deep-Dive with AI

DocumentsDS12158 +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BALF-ATM-01E3	BALF-ATM-01E3 Series

	-	-
Frequency Range [Max]	2.5 GHz	2.5 GHz
Frequency Range [Min]	2.4 GHz	2.4 GHz
Impedance - Unbalanced/Balanced [custom]	50 Ohm	50 Ohm
Impedance - Unbalanced/Balanced [custom]	50	50
Insertion Loss (Max) [Max]	1.3 dB	1.3 dB
Mounting Type	Surface Mount	Surface Mount

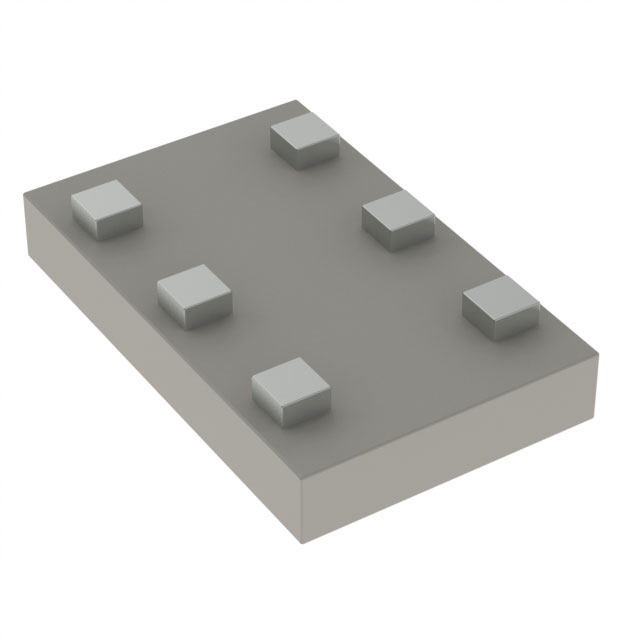

Package / Case	6-SMD, No Lead	6-SMD, No Lead
Phase Difference	9 °	9 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.55
		10	$ 0.47
		100	$ 0.33
		500	$ 0.26
		1000	$ 0.21
		2000	$ 0.19
	Digi-Reel®	1	$ 0.55
		10	$ 0.47
		100	$ 0.33
		500	$ 0.26
		1000	$ 0.21
		2000	$ 0.19
	Tape & Reel (TR)	5000	$ 0.19
		10000	$ 0.17
		15000	$ 0.17
		25000	$ 0.16
		35000	$ 0.16

BALF-ATM-01E3 Series

50 ohms / matched to ATSAMR21E18 balun transformer, with integrated harmonic filter

Part	Insertion Loss (Max) [Max]	Phase Difference	Package / Case	Frequency Range [Max]	Frequency Range [Min]	Impedance - Unbalanced/Balanced [custom]	Impedance - Unbalanced/Balanced [custom]	Mounting Type
STMicroelectronics BALF-ATM-01E3
STMicroelectronics BALF-ATM-01E3	1.3 dB	9 °	6-SMD, No Lead	2.5 GHz	2.4 GHz	50 Ohm	50	Surface Mount

Description

General part information

BALF-ATM-01E3 Series

The BALF-ATM-01E3 from STMicroelectronics is an integrated balun, which also integrates a matching network in a monolithic glass substrate. Matching impedance has been customized for the ATMEL chip. The device uses STMicroelectronics’ IPD technology on a non-conductive glass substrate to optimize RF performance.
