Description
General part information

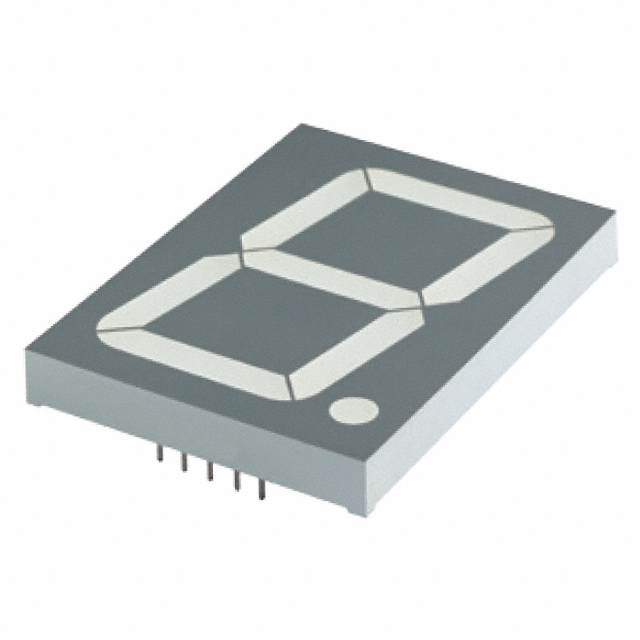

XDVG100 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 8V 10mA 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm) 10-DIP (4.210", 107.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | XDVG100A |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 3.98 in |
| Display Type | 7-Segment |
| Millicandela Rating | 30 mcd |
| Number of Characters | 1 |
| Package Length | 4.21 in |
| Package Name | 10-DIP |
| Package Width | 107 mm |
| Power Dissipation (Max) | 150 mW |
| Size / Dimension Depth | 0.591 in |
| Size / Dimension Height | 4.803 in |
| Size / Dimension Width | 3.543 in |
| Voltage - Forward (Vf) (Typ) | 8 V |
| Wavelength - Peak | 574 nm |
