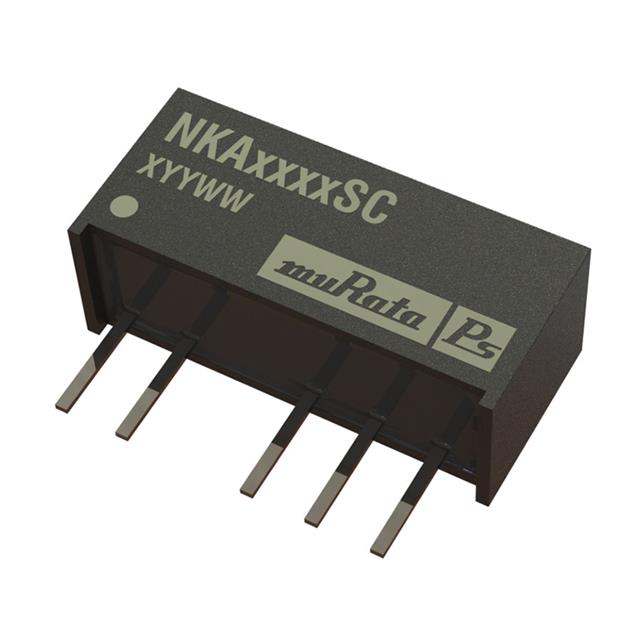

NKA1212SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, MINIATURE, ITE, SIP, 1:1, 1 W, 2 OUTPUT, 12 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

NKA1212SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, MINIATURE, ITE, SIP, 1:1, 1 W, 2 OUTPUT, 12 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NKA1212SC	NKA12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	33 - 100 mA
Current - Output (Max) [Max]	42 mA	42 mA
Current - Output (Max) [Max]	42 mA	42 mA
Efficiency	81 %	74 - 81 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-SIP Module, 5 Leads	6-SIP Module, 5 Leads, 14-DIP Module, 6 Leads
Size / Dimension [x]	16.5 mm	16.5 - 19.5 mm
Size / Dimension [x]	0.65 in	0.65 - 0.77 in
Size / Dimension [y]	0.23 in	0.23 - 0.39 in
Size / Dimension [y]	5.8 mm	5.8 - 9.8 mm
Size / Dimension [z]	7.6 mm	5.4 - 7.6 mm
Size / Dimension [z]	0.3 "	0.21 - 0.3 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	13.2 V
Voltage - Input (Min) [Min]	10.8 V	10.8 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	12 V	5 - 15 V
Voltage - Output 2	-12 V	-15 - -5 V

NKA12 Series

ISOLATED THROUGH HOLE DC/DC CONVERTER, MINIATURE, ITE, SIP, 1:1, 1 W, 2 OUTPUT, 9 V

Part	Mounting Type	Number of Outputs	Package / Case	Type	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Voltage - Output 2	Voltage - Isolation	Applications	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. NKA1209SC	Through Hole	2	6-SIP Module, 5 Leads	Isolated Module	13.2 V	16.5 mm	7.6 mm	0.3 "	0.65 in	0.23 in	5.8 mm	10.8 V	85 °C	-40 °C	79 %	9 V	-9 V	3000 V	ITE (Commercial)
Murata Power Solutions Inc. NKA1212DC	Through Hole	2	14-DIP Module, 6 Leads	Isolated Module	13.2 V	19.5 mm	5.4 mm	0.21 in	0.77 in	0.39 "	9.8 mm	10.8 V	85 °C	-40 °C	81 %	12 V	-12 V	3000 V	ITE (Commercial)	42 mA	42 mA
Murata Power Solutions Inc. NKA1209DC	Through Hole	2	14-DIP Module, 6 Leads	Isolated Module	13.2 V	19.5 mm	5.4 mm	0.21 in	0.77 in	0.39 "	9.8 mm	10.8 V	85 °C	-40 °C	79 %	9 V	-9 V	3000 V	ITE (Commercial)
Murata Power Solutions Inc. NKA1205DC	Through Hole	2	14-DIP Module, 6 Leads	Isolated Module	13.2 V	19.5 mm	5.4 mm	0.21 in	0.77 in	0.39 "	9.8 mm	10.8 V	85 °C	-40 °C	74 %	5 V	-5 V	3000 V	ITE (Commercial)			100 mA	100 mA
Murata Power Solutions Inc. NKA1212SC	Through Hole	2	6-SIP Module, 5 Leads	Isolated Module	13.2 V	16.5 mm	7.6 mm	0.3 "	0.65 in	0.23 in	5.8 mm	10.8 V	85 °C	-40 °C	81 %	12 V	-12 V	3000 V	ITE (Commercial)	42 mA	42 mA
Murata Power Solutions Inc. NKA1215SC	Through Hole	2	6-SIP Module, 5 Leads	Isolated Module	13.2 V	16.5 mm	7.6 mm	0.3 "	0.65 in	0.23 in	5.8 mm	10.8 V	85 °C	-40 °C		15 V	-15 V	3000 V	ITE (Commercial)				33 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.61
		5	$ 7.57
		10	$ 7.52
		25	$ 7.43
		50	$ 7.25
		100	$ 6.89
		250	$ 6.45
		500	$ 6.01
		1000	$ 5.63
Newark	Each	25	$ 8.20
		50	$ 8.01
		100	$ 7.63

Description

General part information

NKA12 Series

The NKA series 2-output isolated sub-miniature DC/DC Converter is the standard building blocks for on-board distributed power systems. The device offers improved efficiency, lower output ripple and 3kVDC isolation capability through the use of state of the art technology. It is ideally suited for providing dual rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 1W.
