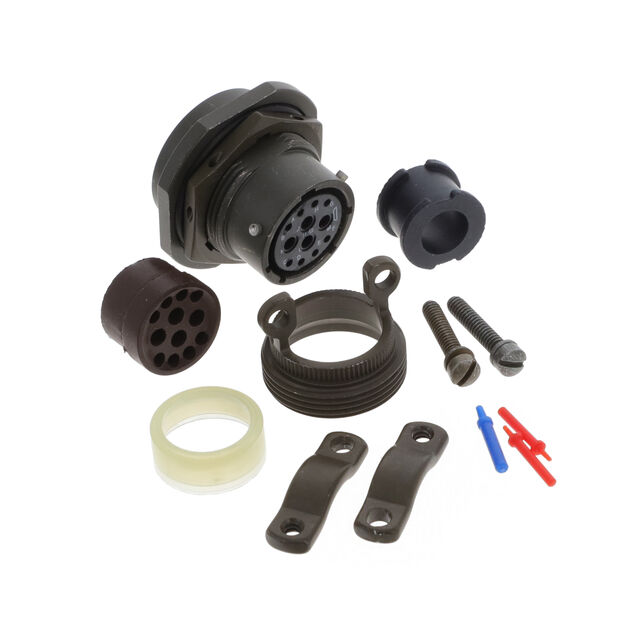

MS3114F14-12S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3114F14-12S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3114F14-12S | MS3114F14 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A, 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | - | Cable Clamp, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 12 | 12 - 15 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum, Aluminum Alloy |
| Shell Size - Insert | 14-12 | 14-12 |
| Shell Size - Insert | - | 14 |
| Shell Size - Insert | - | 15 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 150.98 | |
| 10 | $ 138.54 | |||
| 25 | $ 133.21 | |||
| 50 | $ 128.77 | |||
MS3114F14 Series
CONN RCPT FMALE 15P GOLD SLD CUP
| Part | Primary Material | Qualification | Fastening Type | Shell Finish | Contact Finish - Mating | Grade | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Number of Positions | Orientation | Connector Type | Features | Ingress Protection | Color | Mounting Feature | Backshell Material, Plating | Insert Material | Contact Material | Shell Material | Applications | Shielding | Voltage Rating | Shell Size - Insert | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3114F14-15S | Metal | MIL-DTL-26482 Series I | Bayonet Lock | Olive Drab Chromate over Cadmium | Gold | Military | -55 °C | 125 °C | 14 | 15 | 15 | N | Receptacle, Female Sockets | Backshell, Cable Clamp | Environment Resistant | Olive Drab | Bulkhead - Front Side Nut | Aluminum, Olive Drab Chromate over Cadmium | Neoprene | Copper Alloy | Aluminum | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Unshielded | |||
Amphenol Industrial Operations MS3114F14-12S | Metal | MIL-DTL-26482 Series I | Bayonet Lock | Olive Drab Chromate over Cadmium | Gold | Military | -55 °C | 125 °C | 12 | N | Receptacle, Female Sockets | Environment Resistant | Olive Drab | Bulkhead - Front Side Nut | Neoprene | Copper Alloy | Aluminum Alloy | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Unshielded | 600 VAC | 14-12 | 7.5 A, 13 A |
Description
General part information
MS3114F14 Series
12 Position Circular Connector Receptacle, Female Sockets Solder Cup
Documents
Technical documentation and resources
