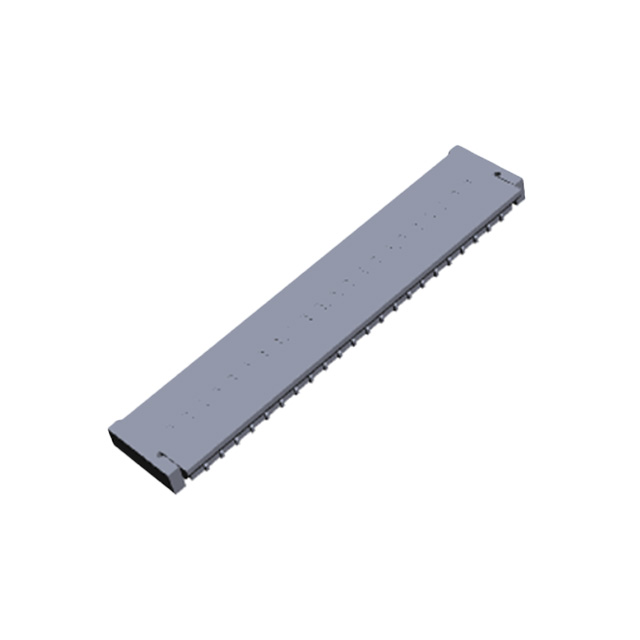

AYF336135A

Active

Panasonic Electric Works

CONN FPC 61POS 0.3MM R/A

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN FPC 61POS 0.3MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF336135A

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	200 mA
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.88 mm
Height Above Board	0.035 "
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	61
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	50 V

Part	Material Flammability Rating	Cable End Type	Pitch [x]	Pitch [x]	Mating Cycles	Connector/Contact Type	Contact Finish Thickness	Voltage Rating	Current Rating (Amps)	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Height Above Board	Height Above Board	Termination	FFC, FCB Thickness	Contact Finish	Mounting Type	Actuator Material	Number of Positions	Flat Flex Type	Locking Feature
Panasonic Electric Works AYF336135A	UL94 V-0	Tapered	0.012 in	0.3 mm	20	Contacts Top and Bottom	Flash	50 V	200 mA	Copper Alloy	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	0.88 mm	0.035 "	Solder	0.2 mm	Gold	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	61	FPC	Backlock Flip Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

61 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
