095Z820-161-006

Active

Amphenol RF

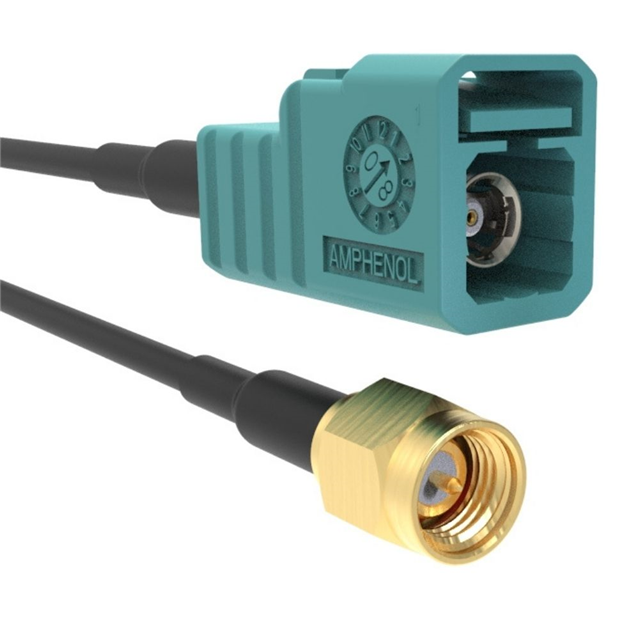

CBL ASSY SMA-FAKRA III PL-JK 6"

Deep-Dive with AI

Search across all available documentation for this part.

095Z820-161-006

Active

Amphenol RF

CBL ASSY SMA-FAKRA III PL-JK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	095Z820-161-006

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra III (Gen 3.0) Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Frequency - Max [Max]	3 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	SMA to Fakra III

095Z820 Series

Part	Frequency - Max [Max]	1st Connector Mounting Type	Cable Impedance	Overall Impedance	Style	1st Contact Gender	Cable Type	1st Connector	Color	Length	Length	Length	2nd Connector Mounting Type	2nd Contact Gender	2nd Connector	Length [x]	Length [x]
Amphenol RF 095Z820-166M100	3 GHz	Free Hanging (In-Line)	50 Ohms	50 Ohms	SMA to Fakra II	Male	RG-58	SMA Plug	Black	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug
Amphenol RF 095Z820-164-036	3 GHz	Free Hanging (In-Line)	50 Ohms	50 Ohms	SMA to Fakra II	Female	RG-58	SMA Jack	Black	91.44 cm		36 in	Free Hanging (In-Line)	Female	Fakra II (Gen 2.0) Jack
Amphenol RF 095Z820-164M200	3 GHz	Free Hanging (In-Line)	50 Ohms	50 Ohms	SMA to Fakra II	Female	RG-58	SMA Jack	Black	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	Female	Fakra II (Gen 2.0) Jack
Amphenol RF 095Z820-164M300	3 GHz	Free Hanging (In-Line)	50 Ohms	50 Ohms	SMA to Fakra II	Female	RG-58	SMA Jack	Black	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	Female	Fakra II (Gen 2.0) Jack
Amphenol RF 095Z820-160-006	3 GHz	Free Hanging (In-Line)	50 Ohms	50 Ohms	SMA to Fakra II	Female	RG-174	SMA Jack	Black	152.4 mm		6 in	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug
Amphenol RF 095Z820-163-024	3 GHz	Free Hanging (In-Line)	50 Ohms	50 Ohms	SMA to Fakra III	Female	RG-58	SMA Jack	Black	609.6 mm		24 "	Free Hanging (In-Line)	Female	Fakra III (Gen 3.0) Jack
Amphenol RF 095Z820-161-006	3 GHz	Free Hanging (In-Line)	50 Ohms	50 Ohms	SMA to Fakra III	Male	RG-174	SMA Plug	Black	152.4 mm		6 in	Free Hanging (In-Line)	Female	Fakra III (Gen 3.0) Jack
Amphenol RF 095Z820-161-036	3 GHz	Free Hanging (In-Line)	50 Ohms	50 Ohms	SMA to Fakra III	Male	RG-174	SMA Plug	Black	91.44 cm		36 in	Free Hanging (In-Line)	Female	Fakra III (Gen 3.0) Jack
Amphenol RF 095Z820-162-036	3 GHz	Free Hanging (In-Line)	50 Ohms	50 Ohms	SMA to Fakra II	Male	RG-174	SMA Plug	Black	91.44 cm		36 in	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug
Amphenol RF 095Z820-161-018	3 GHz	Free Hanging (In-Line)	50 Ohms	50 Ohms	SMA to Fakra III	Male	RG-174	SMA Plug	Black				Free Hanging (In-Line)	Female	Fakra III (Gen 3.0) Jack	457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 21.35
		10	$ 18.50
		25	$ 17.54
		50	$ 17.28
		100	$ 15.25
		250	$ 14.23
		500	$ 13.93

Description

General part information

095Z820 Series

Cable Assembly Coaxial SMA to Fakra III RG-174 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
