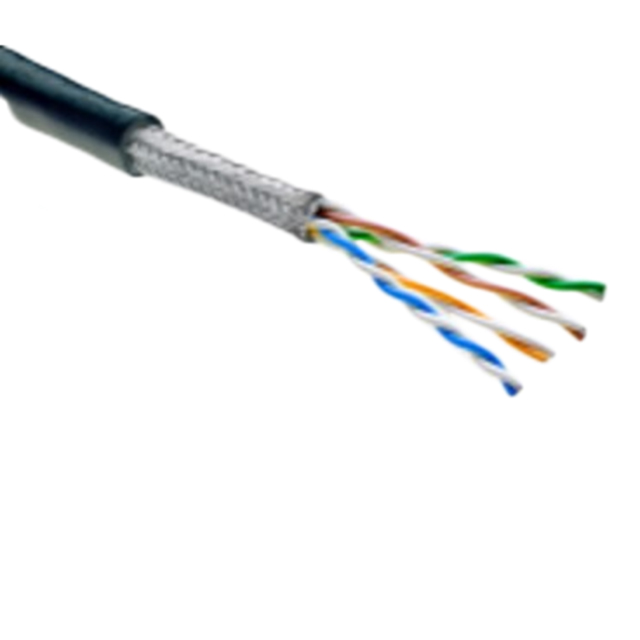

C7X-24B114XL1FA-0CK9500
ActiveTE Connectivity Raychem Cable Protection
CABLE CAT7 8COND 24AWG BLK FEET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C7X-24B114XL1FA-0CK9500
ActiveTE Connectivity Raychem Cable Protection
CABLE CAT7 8COND 24AWG BLK FEET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C7X-24B114XL1FA-0CK9500 |
|---|---|
| Cable Type | Cat7, Multi-Pair |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 0.0079 in |
| Jacket (Insulation) Diameter [diameter] | 9.3 mm |
| Jacket (Insulation) Diameter [diameter] | 0.366 in |
| Jacket (Insulation) Thickness | 0.749 mm |
| Jacket (Insulation) Thickness | 0.0295 in |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Shield Coverage | 92 %, 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Spool Size | 499.9 m |
| Spool Size | 1640 ft |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
C7X-24B114 Series
| Part | Shield Coverage | Jacket Color | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Shield Material | Number of Conductors | Conductor Material | Conductor Insulation | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Spool Size | Spool Size | Length [x] | Length [x] | Length | Length | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Spool Size | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 92 % 100 % | Black | 24 AWG | -25 °C | 75 ░C | Cat7 Multi-Pair | 0.749 mm | 0.0295 in | Enter Number of Feet in Order Quantity | Aluminum Copper Tinned | 8 | Copper Tinned | Foam Polyethylene (FPE) | 300 V | 9.3 mm | 0.366 in | 7 | 0.0079 in | Braid Foil | 499.9 m | 1640 ft | ||||||||
TE Connectivity Raychem Cable Protection | 92 % 100 % | Black | 24 AWG | -25 °C | 75 ░C | Cat7 Multi-Pair | 0.749 mm | 0.0295 in | Aluminum Copper Tinned | 8 | Copper Tinned | Foam Polyethylene (FPE) | 300 V | 7 | 0.0079 in | Braid Foil | 30.5 m 152.4 m | 50 ft 100 ft 500 ' | 3.05 m 15.24 m | 10 ft | 0.343 in | 8.71 mm | |||||||
TE Connectivity Raychem Cable Protection | 92 % 100 % | Black | 24 AWG | -25 °C | 75 ░C | Cat7 Multi-Pair | 0.749 mm | 0.0295 in | Enter Number of Feet in Order Quantity | Aluminum Copper Tinned | 8 | Copper Tinned | Foam Polyethylene (FPE) | 300 V | 9.3 mm | 0.366 in | 7 | 0.0079 in | Braid Foil | 1640.4 ft | 500 m | Zerohal™ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 16.39 | |
| 3 | $ 15.12 | |||
| 5 | $ 14.56 | |||
| 7 | $ 14.24 | |||
| 10 | $ 13.93 | |||
| 25 | $ 13.05 | |||
| 50 | $ 12.41 | |||
| 100 | $ 11.78 | |||
Description
General part information
C7X-24B114 Series
8 (4 Pair Twisted) Conductor Multi-Pair, Cat7 Cable Black 24 AWG Foil, Braid Enter Number of Feet in Order Quantity
