896-034-521-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 34POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-034-521-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 34POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-034-521-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-034 Series
...
| Part | Contact Material | Contact Finish | Number of Rows | Read Out | Contact Type | Mounting Type | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Material - Insulation | Card Type | Contact Finish Thickness | Contact Finish Thickness | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Termination | Termination Rows | Flange Feature | Flange Feature | Flange Feature | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Gold | 2 | Dual | Cantilever | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Black | 125 °C | -40 °C | 34 | Solder | 2 | ||||||
EDAC Inc. | Copper Alloy | Gold | 2 | Dual | Cantilever | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Black | 125 °C | -40 °C | 34 | Solder | 2 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | Gold | 2 | Dual | Cantilever | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Black | 125 °C | -40 °C | 34 | Solder | 2 | 3.25 mm | 0.128 in | Side Mount Opening Unthreaded | |||
EDAC Inc. | Copper Alloy | Gold | 1 | Single | Cantilever | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Black | 125 °C | -40 °C | 34 | Solder | 1 | 4-40 Threaded Insert Top Mount Opening | 34 | ||||
EDAC Inc. | Copper Alloy | Gold | 1 | Single | Cantilever | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Black | 125 °C | -40 °C | 34 | Solder | 1 | Flush Mount Side Opening Unthreaded | 34 | 3.25 mm | 0.128 " | ||
EDAC Inc. | Copper Alloy | Gold | 2 | Dual | Cantilever | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Black | 125 °C | -40 °C | 34 | Solder Eyelet(s) | 2 | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Copper Alloy | Gold | 2 | Dual | Cantilever | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Black | 125 °C | -40 °C | 34 | Solder | 2 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | Copper Alloy | Gold | 2 | Dual | Cantilever | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Black | 125 °C | -40 °C | 34 | Solder | 2 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | |||
EDAC Inc. | Copper Alloy | Gold | 2 | Dual | Cantilever | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Black | 125 °C | -40 °C | 34 | Solder Eyelet(s) | 2 | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | |||
EDAC Inc. | Copper Alloy | Gold | 2 | Dual | Cantilever | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Black | 125 °C | -40 °C | 34 | Solder | 2 | M3 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-034 Series

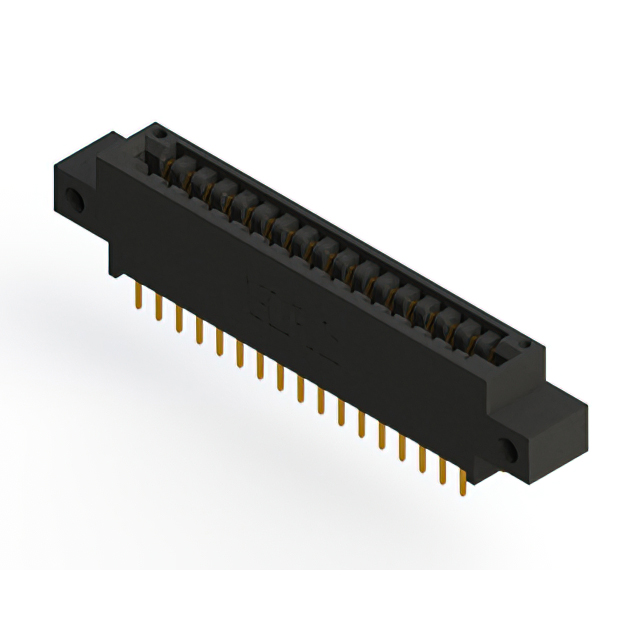

34 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
