10-101980-223
ActiveAmphenol Industrial Operations

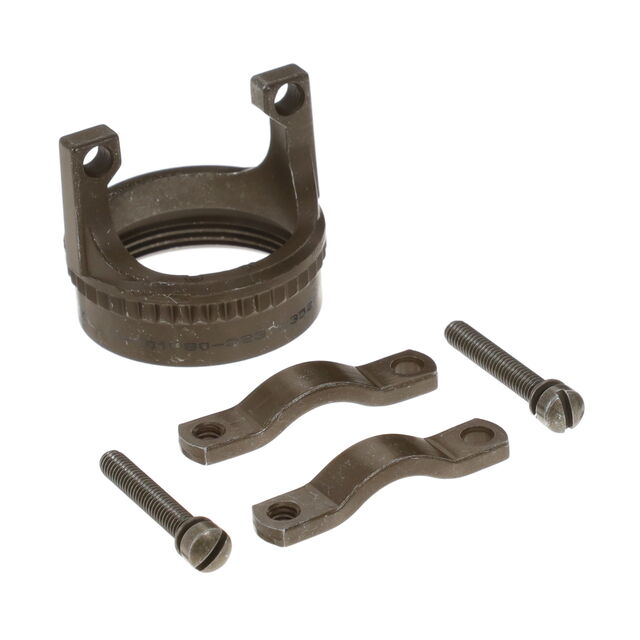

CONN CAB CLAMP SZ22 1 7/16-18
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-101980-223
ActiveAmphenol Industrial Operations
CONN CAB CLAMP SZ22 1 7/16-18
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10-101980-223 | 101980 Series |
|---|---|---|
| Cable Exit | 180 ° | 180 ° |
| Cable Opening | - | 0.74 in |
| Cable Opening | - | 18.8 mm |
| Cable Opening [custom] | 23.57 mm | 7.67 - 23.57 mm |
| Cable Opening [custom] | 0.928 in | 0.302 - 0.928 in |
| Color | Olive Drab | Olive Drab |
| Diameter - Outside [diameter] | 1.408 " | 0.665 - 1.408 in |
| Diameter - Outside [diameter] | 35.76 mm | 16.89 - 35.76 mm |
| Features | Clamp Screws, Strain Relief | Clamp Screws, Strain Relief |
| For Use With/Related Products | Class A and P Connectors | Class A and P Connectors |
| Plating | Cadmium | Cadmium |
| Shell Size - Insert | 22 | 10 - 22 |
| Thread Size | 1 7/16-18 UNEF | 5/8-24 UNEF, 1-20 UNEF, 1 3/16-18 UNEF, 1 7/16-18 UNEF, 7/8-20 UNEF |
| Type | Cable Clamp | Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 38.57 | |
| 10 | $ 33.77 | |||
| 25 | $ 32.31 | |||
| 50 | $ 31.27 | |||
| 100 | $ 30.23 | |||
| 250 | $ 28.56 | |||
101980 Series
CONN CAB CLAMP SZ10 OLIV 5/8-24
| Part | Cable Opening [custom] | Cable Opening [custom] | For Use With/Related Products | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Type | Cable Exit | Features | Thread Size | Shell Size - Insert | Plating | Color | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations 10-101980-103 | 7.67 mm | 0.302 in | Class A and P Connectors | 16.89 mm | 0.665 in | Cable Clamp | 180 ° | Clamp Screws, Strain Relief | 5/8-24 UNEF | 10 | Cadmium | Olive Drab | ||
Amphenol Industrial Operations 10-101980-163 | 15.6 mm | 0.614 in | Class A and P Connectors | 26.34 mm | 1.037 in | Cable Clamp | 180 ° | Clamp Screws, Strain Relief | 1-20 UNEF | 16 | Cadmium | Olive Drab | ||
Amphenol Industrial Operations 10-101980-183 | Class A and P Connectors | 29.34 mm | 1.155 in | Cable Clamp | 180 ° | Clamp Screws, Strain Relief | 1 3/16-18 UNEF | 18 | Cadmium | Olive Drab | 0.74 in | 18.8 mm | ||
Amphenol Industrial Operations 10-101980-203 | Class A and P Connectors | 32.54 mm | 1.281 in | Cable Clamp | 180 ° | Clamp Screws, Strain Relief | 1 3/16-18 UNEF | 20 | Cadmium | Olive Drab | 0.74 in | 18.8 mm | ||
Amphenol Industrial Operations 10-101980-223 | 23.57 mm | 0.928 in | Class A and P Connectors | 35.76 mm | 1.408 " | Cable Clamp | 180 ° | Clamp Screws, Strain Relief | 1 7/16-18 UNEF | 22 | Cadmium | Olive Drab | ||
Amphenol Industrial Operations 10-101980-143 | 14.02 mm | 0.552 in | Class A and P Connectors | 23.11 mm | 0.91 in | Cable Clamp | 180 ° | Clamp Screws, Strain Relief | 7/8-20 UNEF | 14 | Cadmium | Olive Drab |
Description
General part information
101980 Series
Olive Drab Connector Cable Clamp 1 7/16-18 UNEF 22
