TDA21211AUMA1
ObsoleteInfineon Technologies
IC HALF BRIDGE DRVR 35A IQFN-40
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDA21211AUMA1
ObsoleteInfineon Technologies
IC HALF BRIDGE DRVR 35A IQFN-40
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDA21211AUMA1 |
|---|---|
| Applications | Buck Converters |
| Current - Output / Channel | 35 A |
| Fault Protection | Shoot-Through |
| Features | Bootstrap Circuit |
| Interface | PWM |
| Load Type | Inductive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |

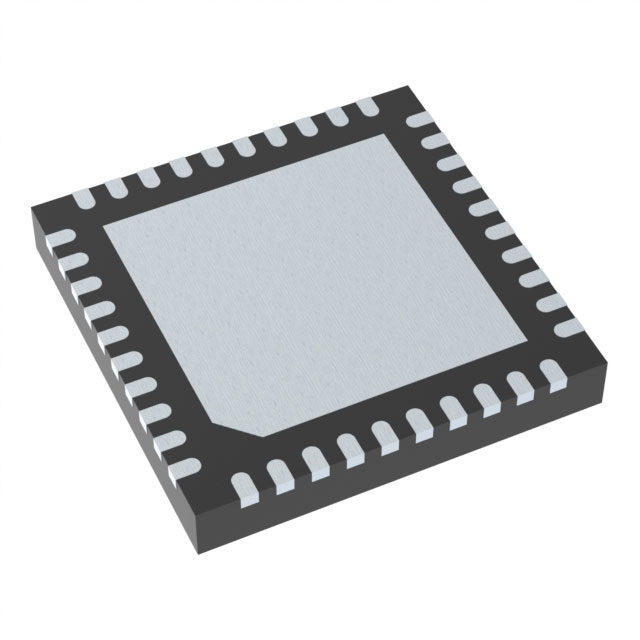

| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | PG-IQFN-40-1 |
| Technology | DrMOS |
| Voltage - Load [Max] | 30 V |
| Voltage - Load [Min] | 5 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TDA21211 Series
Half Bridge Driver Buck Converters DrMOS PG-IQFN-40-1
