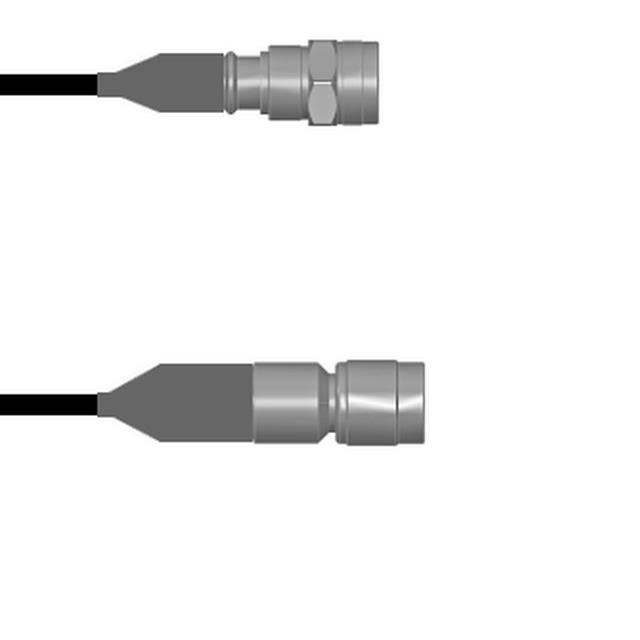

Q-2L07600130.5M

Active

Amphenol Custom Cable

CBL ASSY RPTNC-NTYPE PL-P 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2L07600130.5M

Active

Amphenol Custom Cable

CBL ASSY RPTNC-NTYPE PL-P 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2L07600130.5M

1st Connector	RP-TNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	RP-TNC to N-Type

Q-2L0760 Series

Part	Frequency - Max [Max]	Overall Impedance	Cable Type	2nd Connector	2nd Connector Mounting Type	1st Connector Mounting Type	1st Connector	Color	Features	Length	Length	Length	2nd Contact Gender	1st Contact Gender	Style	Length [x]	Length [x]
Amphenol Custom Cable Q-2L0760013001M	6000 MHz	50 Ohms	LMR 400	N-Type Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC Plug	Black	Shielded	1 m	3.3 ft	39.4 in	Male	Female	RP-TNC to N-Type
Amphenol Custom Cable Q-2L07600130.5M	6000 MHz	50 Ohms	LMR 400	N-Type Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC Plug	Black	Shielded	50 cm		19.69 "	Male	Female	RP-TNC to N-Type
Amphenol Custom Cable Q-2L0760013006i	6000 MHz	50 Ohms	LMR 400	N-Type Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC Plug	Black	Shielded	152.4 mm		6 in	Male	Female	RP-TNC to N-Type
Amphenol Custom Cable Q-2L0760013108i	6000 MHz	50 Ohms	LMR 400	N-Type Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC Plug	Black	Shielded	2.7 m	9 ft	108 in	Male	Female	RP-TNC to N-Type
Amphenol Custom Cable Q-2L07600132.5M	6000 MHz	50 Ohms	LMR 400	N-Type Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC Plug	Black	Shielded	2.5 m	8.2 '	98.4 in	Male	Female	RP-TNC to N-Type
Amphenol Custom Cable Q-2L0760013072i	6000 MHz	50 Ohms	LMR 400	N-Type Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC Plug	Black	Shielded	1.8 m	6 ft	72 in	Male	Female	RP-TNC to N-Type
Amphenol Custom Cable Q-2L0760013048i	6000 MHz	50 Ohms	LMR 400	N-Type Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC Plug	Black	Shielded	1200 mm	4 ft	48 in	Male	Female	RP-TNC to N-Type
Amphenol Custom Cable Q-2L07600131.5M	6000 MHz	50 Ohms	LMR 400	N-Type Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC Plug	Black	Shielded	1.5 m	4.9 ft	59.1 in	Male	Female	RP-TNC to N-Type
Amphenol Custom Cable Q-2L0760013.25M	6000 MHz	50 Ohms	LMR 400	N-Type Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC Plug	Black	Shielded				Male	Female	RP-TNC to N-Type	9.843 "	250 mm
Amphenol Custom Cable Q-2L0760013024i	6000 MHz	50 Ohms	LMR 400	N-Type Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC Plug	Black	Shielded	609.6 mm		24 "	Male	Female	RP-TNC to N-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 82.02
		25	$ 80.46
		50	$ 78.91
		100	$ 77.35
		250	$ 75.80

Description

General part information

Q-2L0760 Series

Cable Assembly Coaxial RP-TNC to N-Type LMR 400 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
