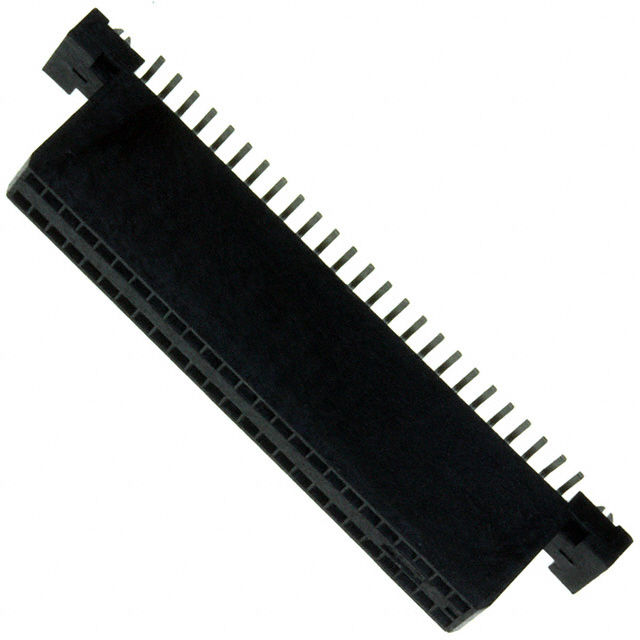

5-104550-6
ActiveTE Connectivity AMP Connectors
CONN RCPT 50POS 0.05 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
5-104550-6
ActiveTE Connectivity AMP Connectors
CONN RCPT 50POS 0.05 GOLD SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-104550-6 | 104550 Series |
|---|---|---|
| Connector Type | Receptacle | Receptacle |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.37 in | 0.37 in |
| Insulation Height | 9.4 mm | 9.4 mm |
| Insulation Material | Polyphthalamide (PPA) | Polyphthalamide (PPA) |
| Mated Stacking Heights | 11.94 mm, 13.08 mm | 11.94 - 13.08 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 50 | 10 - 100 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Termination | Solder | Solder |
| Voltage Rating | 30 VAC | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 10.03 | |
| 13 | $ 9.82 | |||
| 104 | $ 9.20 | |||
104550 Series
CONN RCPT 30POS 0.05 GOLD SMD
| Part | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Contact Shape | Mated Stacking Heights | Contact Finish - Mating | Contact Material | Number of Positions | Number of Positions Loaded | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Number of Rows | Contact Type | Insulation Height | Insulation Height | Insulation Color | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104550-4 | Polyphthalamide (PPA) | 30 Áin | 0.76 Ám | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Surface Mount | Square | 11.94 mm, 13.08 mm | Gold | Phosphor Bronze | 30 | All | Solder | 150 Áin | 3.81 Ám | Receptacle | 2 | Female Socket | 0.37 in | 9.4 mm | Black | 0.05 in | 1.27 mm | 30 VAC | Tin-Lead |
TE Connectivity AMP Connectors 104550-5 | Polyphthalamide (PPA) | 30 Áin | 0.76 Ám | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Surface Mount | Square | 11.94 mm, 13.08 mm | Gold | Phosphor Bronze | 40 | All | Solder | 150 Áin | 3.81 Ám | Receptacle | 2 | Female Socket | 0.37 in | 9.4 mm | Black | 0.05 in | 1.27 mm | 30 VAC | Tin-Lead |
TE Connectivity AMP Connectors 5-104550-2 | Polyphthalamide (PPA) | 30 Áin | 0.76 Ám | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Surface Mount | Square | 11.94 mm, 13.08 mm | Gold | Phosphor Bronze | 20 | All | Solder | 150 Áin | 3.81 Ám | Receptacle | 2 | Female Socket | 0.37 in | 9.4 mm | Black | 0.05 in | 1.27 mm | 30 VAC | Tin |
TE Connectivity AMP Connectors 104550-9 | Polyphthalamide (PPA) | 30 Áin | 0.76 Ám | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Surface Mount | Square | 11.94 mm, 13.08 mm | Gold | Phosphor Bronze | 100 | All | Solder | 150 Áin | 3.81 Ám | Receptacle | 2 | Female Socket | 0.37 in | 9.4 mm | Black | 0.05 in | 1.27 mm | 30 VAC | Tin-Lead |
TE Connectivity AMP Connectors 5-104550-4 | Polyphthalamide (PPA) | 30 Áin | 0.76 Ám | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Surface Mount | Square | 11.94 mm, 13.08 mm | Gold | Phosphor Bronze | 30 | All | Solder | 150 Áin | 3.81 Ám | Receptacle | 2 | Female Socket | 0.37 in | 9.4 mm | Black | 0.05 in | 1.27 mm | 30 VAC | Tin |
TE Connectivity AMP Connectors 5-104550-6 | Polyphthalamide (PPA) | 30 Áin | 0.76 Ám | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Surface Mount | Square | 11.94 mm, 13.08 mm | Gold | Phosphor Bronze | 50 | All | Solder | 150 Áin | 3.81 Ám | Receptacle | 2 | Female Socket | 0.37 in | 9.4 mm | Black | 0.05 in | 1.27 mm | 30 VAC | Tin |
TE Connectivity AMP Connectors 5-104550-1 | Polyphthalamide (PPA) | 30 Áin | 0.76 Ám | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Surface Mount | Square | 11.94 mm, 13.08 mm | Gold | Phosphor Bronze | 10 | All | Solder | 150 Áin | 3.81 Ám | Receptacle | 2 | Female Socket | 0.37 in | 9.4 mm | Black | 0.05 in | 1.27 mm | 30 VAC | Tin |
TE Connectivity AMP Connectors 104550-3 | Polyphthalamide (PPA) | 30 Áin | 0.76 Ám | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Surface Mount | Square | 11.94 mm, 13.08 mm | Gold | Phosphor Bronze | 24 | All | Solder | 150 Áin | 3.81 Ám | Receptacle | 2 | Female Socket | 0.37 in | 9.4 mm | Black | 0.05 in | 1.27 mm | 30 VAC | Tin-Lead |
TE Connectivity AMP Connectors 5-104550-9 | Polyphthalamide (PPA) | 30 Ąin | 0.76 Ąm | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Surface Mount | Square | 11.94 mm, 13.08 mm | Gold | Phosphor Bronze | 100 | All | Solder | 150 Ąin | 3.81 Ąm | Receptacle | 2 | Female Socket | 0.37 in | 9.4 mm | Black | 0.05 in | 1.27 mm | 30 VAC | Tin |
Description
General part information
104550 Series
50 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
