MEV1S1209DC

Active

Murata Power Solutions Inc.

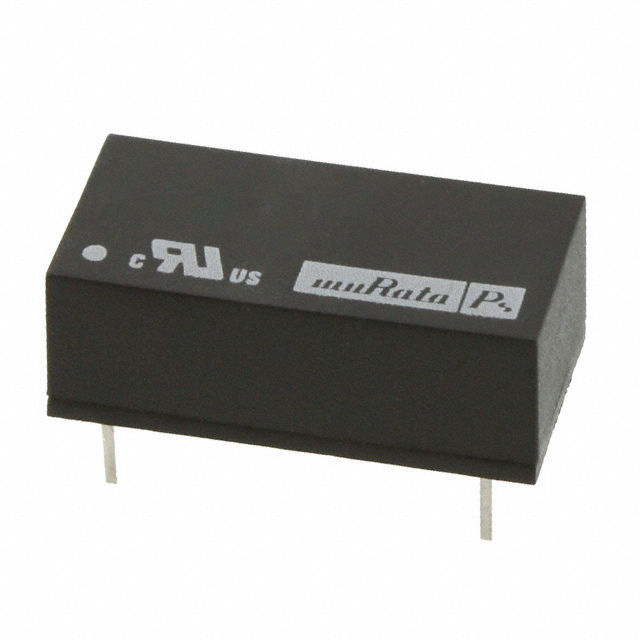

DC DC CONVERTER 9V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 9V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MEV1S1209DC	MEV1S12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	84 - 200 mA
Efficiency	86 %	84 - 88 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 5 Leads	14-DIP Module, 5 Leads, 6-SIP Module, 5 Leads, 7-SIP Module, 5 Leads
Size / Dimension [x]	19.7 mm	19.6 - 19.7 mm
Size / Dimension [x]	0.77 in	0.77 in
Size / Dimension [y]	10 mm	6.1 - 10 mm
Size / Dimension [y]	0.39 "	0.24 - 0.39 "
Size / Dimension [z]	0.28 "	0.28 - 0.4 "
Size / Dimension [z]	7 mm	7 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	13.2 V
Voltage - Input (Min) [Min]	10.8 V	10.8 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	9 V	5 - 12 V

DC DC CONVERTER 12V 1W

Part	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Package / Case	Current - Output (Max) [Max]	Voltage - Isolation	Mounting Type	Efficiency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. MEV1S1212DC	Isolated Module	19.7 mm	10 mm	0.28 "	7 mm	0.39 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	14-DIP Module, 5 Leads	84 mA	3000 V	Through Hole	88 %	12 V	85 °C	-40 °C
Murata Power Solutions Inc. MEV1S1205SC	Isolated Module	19.6 mm	6.1 mm	0.4 "	10.2 mm	0.24 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	6-SIP Module, 5 Leads	200 mA	3000 V	Through Hole	84 %	5 V	85 °C	-40 °C
Murata Power Solutions Inc. MEV1S1205DC	Isolated Module	19.7 mm	10 mm	0.28 "	7 mm	0.39 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	14-DIP Module, 5 Leads	200 mA	3000 V	Through Hole	84 %	5 V	85 °C	-40 °C
Murata Power Solutions Inc. MEV1S1209DC	Isolated Module	19.7 mm	10 mm	0.28 "	7 mm	0.39 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	14-DIP Module, 5 Leads		3000 V	Through Hole	86 %	9 V	85 °C	-40 °C
Murata Power Solutions Inc. MEV1S1212SC	Isolated Module	19.7 mm	6.2 mm	0.4 "	10.2 mm	0.24 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	7-SIP Module, 5 Leads	84 mA	3000 V	Through Hole	88 %	12 V	85 °C	-40 °C
Murata Power Solutions Inc. MEV1S1209SC	Isolated Module	19.7 mm	6.2 mm	0.4 "	10.2 mm	0.24 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	7-SIP Module, 5 Leads		3000 V	Through Hole	86 %	9 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 9V 111mA 10.8V - 13.2V Input
