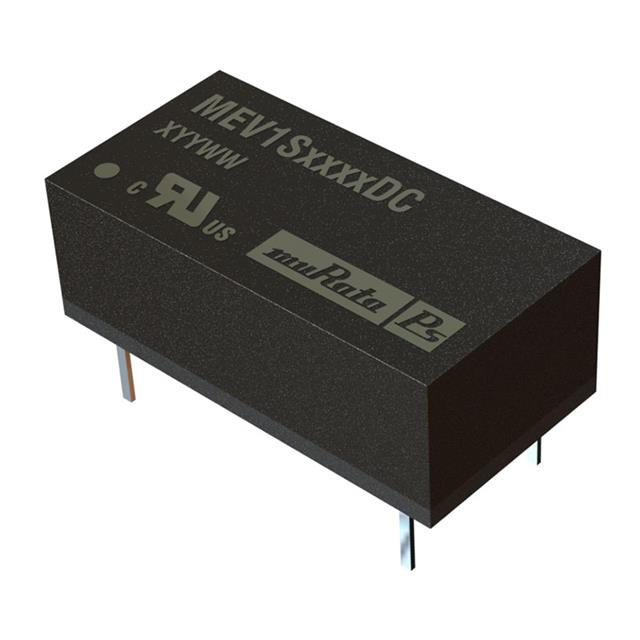

MEV1S1205DC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

MEV1S1205DC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.77
		5	$ 6.74
		10	$ 6.69
		25	$ 6.61
		50	$ 6.45
		100	$ 6.13
		250	$ 5.73
		500	$ 5.35
		1000	$ 5.01
Newark	Each	25	$ 7.29
		50	$ 7.12
		100	$ 6.79

Description

General part information

MEV1S12 Series

The E75-PPA series IntelliView™ series compact, high performance specialty Photoelectric Sensor designed to solve a wide array of sensing challenges. IntelliView encompasses a variety of new sensing technologies of color, contrast and luminescence sensing, field-adjustable foreground and background suppression sensing, short-range distance sensing with analog outputs and long-range, high-precision laser distance sensing with analog outputs. To fit into the application, IntelliView sensor is available in industry-standard M18 flat-tubular and compact rectangular. For ease of installation and replacement, it is available with micro-connectors.

Documents

Technical documentation and resources

Datasheet

Specification	MEV1S1205DC	MEV1S12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	200 mA	84 - 200 mA
Efficiency	84 %	84 - 88 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 5 Leads	14-DIP Module, 5 Leads, 6-SIP Module, 5 Leads, 7-SIP Module, 5 Leads
Size / Dimension [x]	19.7 mm	19.6 - 19.7 mm
Size / Dimension [x]	0.77 in	0.77 in
Size / Dimension [y]	10 mm	6.1 - 10 mm
Size / Dimension [y]	0.39 "	0.24 - 0.39 "
Size / Dimension [z]	0.28 "	0.28 - 0.4 "
Size / Dimension [z]	7 mm	7 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	13.2 V
Voltage - Input (Min) [Min]	10.8 V	10.8 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 - 12 V

Part	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Package / Case	Current - Output (Max) [Max]	Voltage - Isolation	Mounting Type	Efficiency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. MEV1S1212DC	Isolated Module	19.7 mm	10 mm	0.28 "	7 mm	0.39 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	14-DIP Module, 5 Leads	84 mA	3000 V	Through Hole	88 %	12 V	85 °C	-40 °C
Murata Power Solutions Inc. MEV1S1205SC	Isolated Module	19.6 mm	6.1 mm	0.4 "	10.2 mm	0.24 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	6-SIP Module, 5 Leads	200 mA	3000 V	Through Hole	84 %	5 V	85 °C	-40 °C
Murata Power Solutions Inc. MEV1S1205DC	Isolated Module	19.7 mm	10 mm	0.28 "	7 mm	0.39 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	14-DIP Module, 5 Leads	200 mA	3000 V	Through Hole	84 %	5 V	85 °C	-40 °C
Murata Power Solutions Inc. MEV1S1209DC	Isolated Module	19.7 mm	10 mm	0.28 "	7 mm	0.39 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	14-DIP Module, 5 Leads		3000 V	Through Hole	86 %	9 V	85 °C	-40 °C
Murata Power Solutions Inc. MEV1S1212SC	Isolated Module	19.7 mm	6.2 mm	0.4 "	10.2 mm	0.24 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	7-SIP Module, 5 Leads	84 mA	3000 V	Through Hole	88 %	12 V	85 °C	-40 °C
Murata Power Solutions Inc. MEV1S1209SC	Isolated Module	19.7 mm	6.2 mm	0.4 "	10.2 mm	0.24 "	0.77 in	ITE (Commercial)	13.2 V	10.8 V	1	7-SIP Module, 5 Leads		3000 V	Through Hole	86 %	9 V	85 °C	-40 °C
