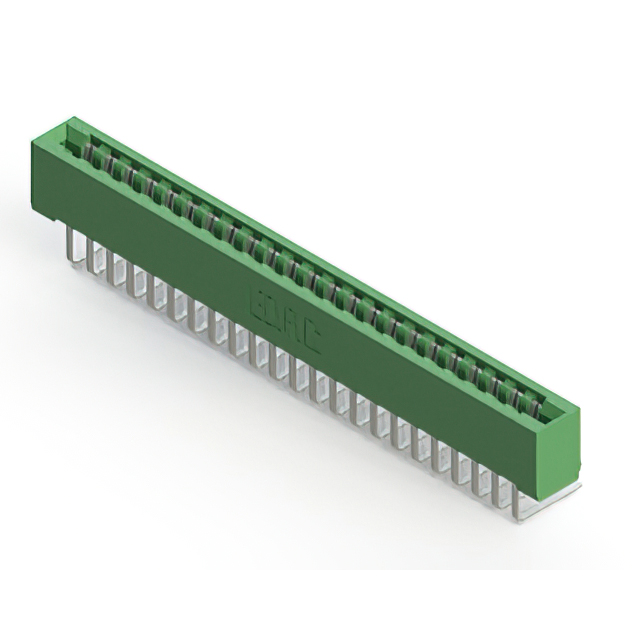

807-023-458-101

Active

EDAC Inc.

CONN EDGE SGL FML 23POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-023-458-101

Active

EDAC Inc.

CONN EDGE SGL FML 23POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-023-458-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	23
Number of Positions/Bay/Row [custom]	23
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

807-023 Series

...

Part	Mounting Type	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]	Number of Positions	Contact Finish	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Contact Type	Gender	Material - Insulation	Card Type	Termination	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 807-023-457-103	Through Hole Right Angle	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	2	23	46	Tin	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Dual	Semi Bellows	Female	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder	0.156 in	3.96 mm	125 °C	-40 °C
EDAC Inc. 807-023-501-104	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	2	23	46	Gold	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Dual	Semi Bellows	Female	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder Eyelet(s)	0.156 in	3.96 mm	125 °C	-40 °C	10 Áin	0.25 Ám
EDAC Inc. 807-023-525-108	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	1	23	23	Gold		4-40 Flush Mount Threaded Insert Top Opening		Single	Semi Bellows	Female	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Solder	0.156 in	3.96 mm	125 °C	-40 °C	10 Áin	0.25 Ám
EDAC Inc. 807-023-501-101	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	2	23	46	Gold				Dual	Semi Bellows	Female	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder Eyelet(s)	0.156 in	3.96 mm	125 °C	-40 °C	10 Áin	0.25 Ám
EDAC Inc. 807-023-505-107	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	1	23	23	Gold		Flush Mount M3 Threaded Insert Top Opening		Single	Semi Bellows	Female	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Solder Eyelet(s)	0.156 in	3.96 mm	125 °C	-40 °C	10 Áin	0.25 Ám
EDAC Inc. 807-023-521-104	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	2	23	46	Gold	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Dual	Semi Bellows	Female	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder	0.156 in	3.96 mm	125 °C	-40 °C	10 Áin	0.25 Ám
EDAC Inc. 807-023-547-104	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	1	23	23	Gold	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Single	Semi Bellows	Female	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Wire Wrap	0.156 in	3.96 mm	125 °C	-40 °C	10 Áin	0.25 Ám
EDAC Inc. 807-023-505-104	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	1	23	23	Gold	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Single	Semi Bellows	Female	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Solder Eyelet(s)	0.156 in	3.96 mm	125 °C	-40 °C	10 Áin	0.25 Ám
EDAC Inc. 807-023-458-101	Through Hole Right Angle	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	1	23	23	Tin				Single	Semi Bellows	Female	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Solder	0.156 in	3.96 mm	125 °C	-40 °C
EDAC Inc. 807-023-447-103	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	1	23	23	Tin	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Single	Semi Bellows	Female	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Wire Wrap	0.156 in	3.96 mm	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 95.34

Description

General part information

807-023 Series

23 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
