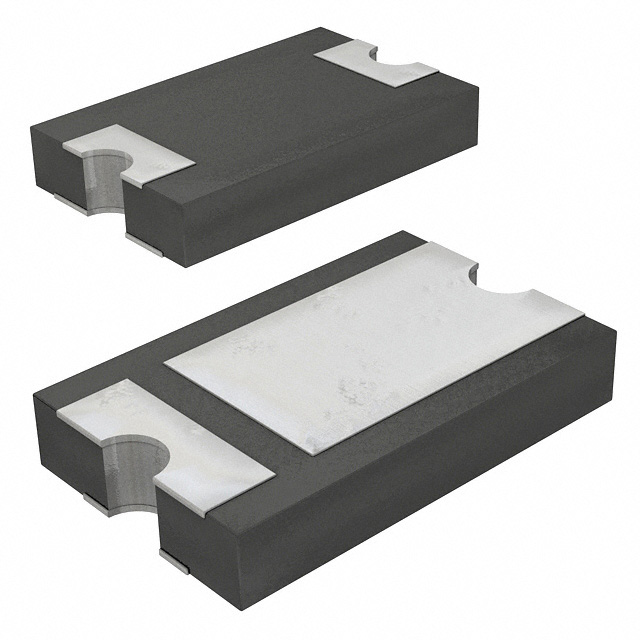

CDBZ5T1045-HF

Active

Comchip Technology

DIODE SCHOTTKY 45V 10A SMC

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 45V 10A SMC

Technical Specifications

Parameters and characteristics for this part

Specification	CDBZ5T1045-HF

Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	Z5-T
Speed	200 mA, 500 ns
Supplier Device Package	SMC (Z5-T)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	550 mV

DIODE SCHOTTKY 45V 10A SMC

Part	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Technology	Mounting Type	Supplier Device Package	Current - Average Rectified (Io)	Speed	Package / Case
Comchip Technology CDBZ5T1045-HF	550 mV	45 V	150 °C	-55 °C	100 µA	Schottky	Surface Mount	SMC (Z5-T)	10 A	200 mA, 500 ns	Z5-T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 45 V 10A Surface Mount SMC (Z5-T)
