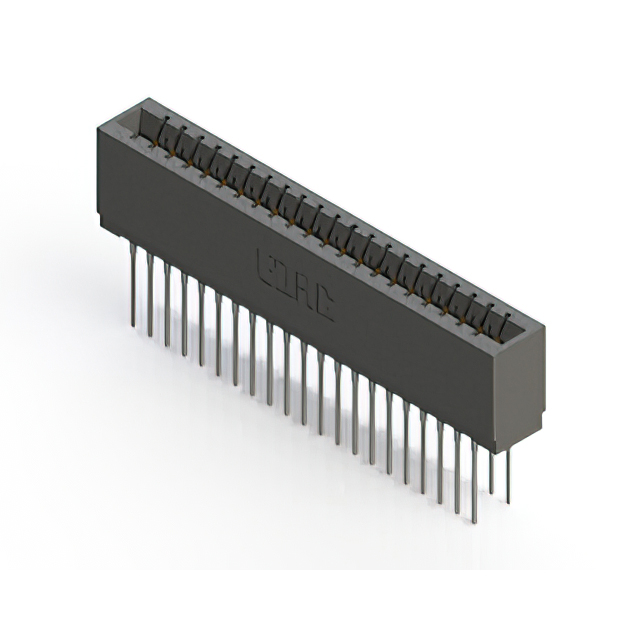

746-042-545-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
746-042-545-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 746-042-545-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap, Press-Fit |
| Termination Rows | 2 |
746-042 Series
| Part | Number of Rows | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Gender | Contact Type | Mounting Type | Material - Insulation | Termination Rows | Color | Card Type | Contact Finish | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Press-Fit Wire Wrap | Copper Alloy | 42 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | 0.76 Ám | 30 Áin | Female | Cantilever | Through Hole | Polyester Thermoplastic | 2 | Black | Non Specified - Dual Edge | Gold | |
EDAC Inc. | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Press-Fit | Copper Alloy | 42 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | 0.76 Ám | 30 Áin | Female | Cantilever | Through Hole | Polyester Thermoplastic | 2 | Black | Non Specified - Dual Edge | Gold | |
EDAC Inc. | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Press-Fit | Copper Alloy | 42 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | 0.76 Ám | 30 Áin | Female | Cantilever | Through Hole | Polyester Thermoplastic | 2 | Black | Non Specified - Dual Edge | Gold | |
EDAC Inc. | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Press-Fit | Copper Alloy | 42 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | 0.76 Ám | 30 Áin | Female | Cantilever | Through Hole | Polyester Thermoplastic | 2 | Black | Non Specified - Dual Edge | Gold | |
EDAC Inc. | 1 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Press-Fit Wire Wrap | Copper Alloy | 42 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | 0.76 Ám | 30 Áin | Female | Cantilever | Through Hole | Polyester Thermoplastic | 1 | Black | Non Specified - Single Edge | Gold | 42 |
EDAC Inc. | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Press-Fit Wire Wrap | Copper Alloy | 42 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | 0.76 Ám | 30 Áin | Female | Cantilever | Through Hole | Polyester Thermoplastic | 2 | Black | Non Specified - Dual Edge | Gold | |
EDAC Inc. | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Press-Fit Wire Wrap | Copper Alloy | 42 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | 0.76 Ám | 30 Áin | Female | Cantilever | Through Hole | Polyester Thermoplastic | 2 | Black | Non Specified - Dual Edge | Gold | |
EDAC Inc. | 1 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Press-Fit Wire Wrap | Copper Alloy | 42 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | 0.76 Ám | 30 Áin | Female | Cantilever | Through Hole | Polyester Thermoplastic | 1 | Black | Non Specified - Single Edge | Gold | 42 |
EDAC Inc. | 1 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Press-Fit Wire Wrap | Copper Alloy | 42 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | 0.76 Ám | 30 Áin | Female | Cantilever | Through Hole | Polyester Thermoplastic | 1 | Black | Non Specified - Single Edge | Gold | 42 |
EDAC Inc. | 1 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Press-Fit Wire Wrap | Copper Alloy | 42 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | 0.76 Ám | 30 Áin | Female | Cantilever | Through Hole | Polyester Thermoplastic | 1 | Black | Non Specified - Single Edge | Gold | 42 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
746-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
