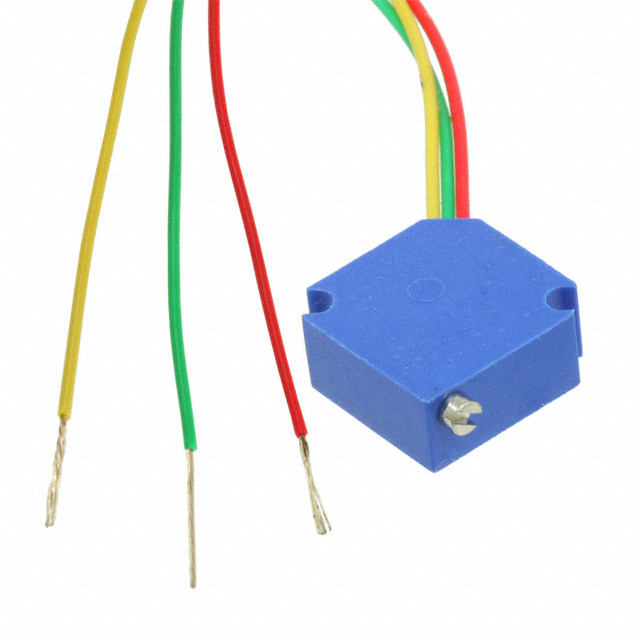

Specification	3292L-1-500LF

Adjustment Type	Top Adjustment
Mounting Type	Chassis Mount
Number of Turns	25
Power (Watts)	500 mW
Power (Watts) Options	1/2W
Resistance	50 Ohms
Resistive Material	Cermet
Size / Dimension Length	0.375 in
Size / Dimension Shape	Rectangular
Size / Dimension Width	0.15 in
Temperature Coefficient	100 ppm/°C
Termination Style	Wire Leads
Tolerance	10 %

3292L Series

Part	Resistive Material	Resistance	Termination Style	Adjustment Type	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Width	Power (Watts)	Power (Watts) Options	Mounting Type	Tolerance	Temperature Coefficient	Number of Turns
Bourns Inc. 3292L-1-203	Cermet	20 kOhm	Wire Leads	Top Adjustment	0.375 in	Rectangular	0.15 in	500 mW	1/2W	Chassis Mount	10 %	100 ppm/°C	25
Bourns Inc. 3292L-1-500LF	Cermet	50 Ohms	Wire Leads	Top Adjustment	0.375 in	Rectangular	0.15 in	500 mW	1/2W	Chassis Mount	10 %	100 ppm/°C	25
Bourns Inc. 3292L-1-501LF	Cermet	500 Ohm	Wire Leads	Top Adjustment	0.375 in	Rectangular	0.15 in	500 mW	1/2W	Chassis Mount	10 %	100 ppm/°C	25
Bourns Inc. 3292L-1-503	Cermet	50 kOhm	Wire Leads	Top Adjustment	0.375 in	Rectangular	0.15 in	500 mW	1/2W	Chassis Mount	10 %	100 ppm/°C	25
Bourns Inc. 3292L-1-502LF	Cermet	5 kOhm	Wire Leads	Top Adjustment	0.375 in	Rectangular	0.15 in	500 mW	1/2W	Chassis Mount	10 %	100 ppm/°C	25
Bourns Inc. 3292L-1-101	Cermet	100 Ohms	Wire Leads	Top Adjustment	0.375 in	Rectangular	0.15 in	500 mW	1/2W	Chassis Mount	10 %	100 ppm/°C	25
Bourns Inc. 3292L-1-101M	Cermet	100 Ohms	Wire Leads	Top Adjustment	0.375 in	Rectangular	0.15 in	500 mW	1/2W	Panel Mount Wire Leads	10 %	100 ppm/°C	25
Bourns Inc. 3292L-1-253MLF	Cermet	25 kOhm	Wire Leads	Top Adjustment	0.375 in	Rectangular	0.15 in	500 mW	1/2W	Panel Mount Wire Leads	10 %	100 ppm/°C	25
Bourns Inc. 3292L-1-104	Cermet	100 kOhm	Wire Leads	Top Adjustment	0.375 in	Rectangular	0.15 in	500 mW	1/2W	Chassis Mount	10 %	100 ppm/°C	25
Bourns Inc. 3292L-1-204LF	Cermet	200 kOhm	Wire Leads	Top Adjustment	0.375 in	Rectangular	0.15 in	500 mW	1/2W	Chassis Mount	10 %	100 ppm/°C	25
