N-270AA
ObsoletePanasonic Industrial Automation Sales

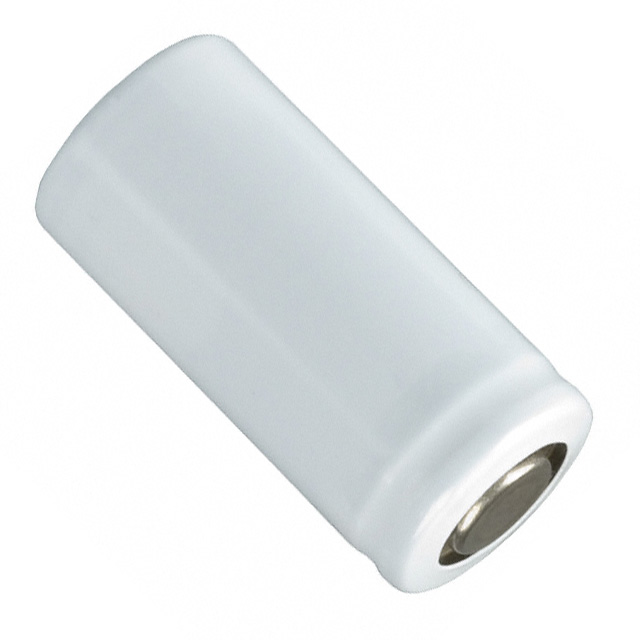

BATTERY NICAD 1.2V 270MAH 2/3AA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N-270AA |
|---|---|
| Battery Cell Size | 2/3AA |
| Battery Chemistry | Nickel Cadmium |
| Capacity | 270 mAh |
| Discharge Rate | 54 mA |
| Standard Charge Current | 27 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 1.2 V |
| Weight | 14.06 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
N-270 Series
2/3AA 1.2 V Nickel Cadmium Battery Rechargeable (Secondary) 270mAh
