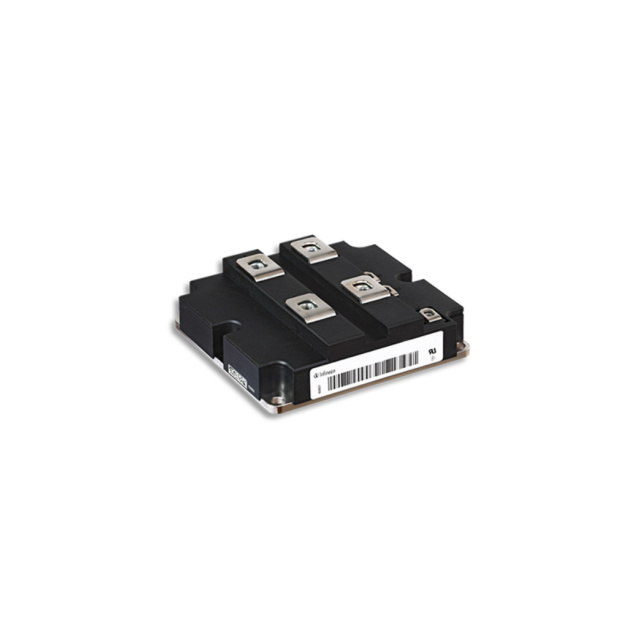

FD400R33KF2CNOSA1

Obsolete

Infineon Technologies

IGBT MOD 3300V 660A 4800W

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IGBT MOD 3300V 660A 4800W

Technical Specifications

Parameters and characteristics for this part

Specification	FD400R33KF2CNOSA1

Configuration	Single Chopper
Current - Collector (Ic) (Max) [Max]	660 A
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Standard
Input Capacitance (Cies) @ Vce	50 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	4800 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	4.25 V
Voltage - Collector Emitter Breakdown (Max)	3300 V

Part	Voltage - Collector Emitter Breakdown (Max)	NTC Thermistor	Input Capacitance (Cies) @ Vce	Input	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Vce(on) (Max) @ Vge, Ic	Package / Case	Mounting Type	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Configuration	Supplier Device Package
Infineon Technologies FD400R33KF2CNOSA1	3300 V		50 nF	Standard	660 A	125 °C	-40 °C	4.25 V	Module	Chassis Mount	5 mA	4800 W	Single Chopper	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Single Chopper 3300 V 660 A 4800 W Chassis Mount Module

Technical documentation and resources

No documents available
