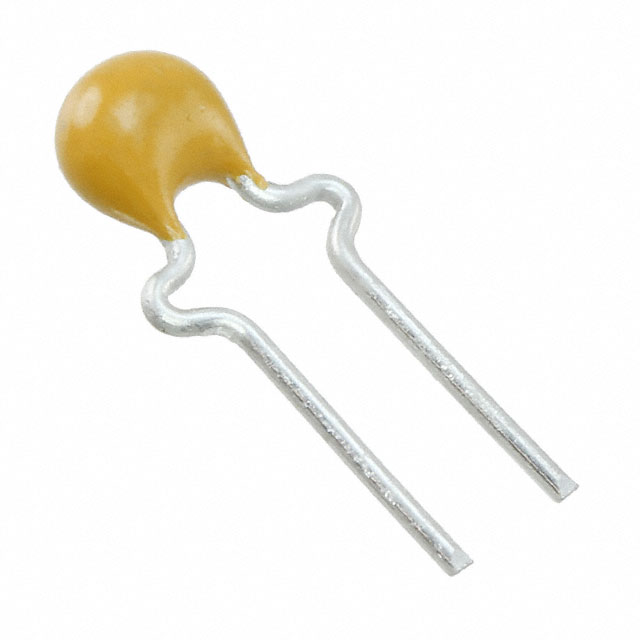

C316C182F2G5TA

Active

KEMET

CAP CER 1800PF 200V C0G/NP0 RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C316C182F2G5TA

Active

KEMET

CAP CER 1800PF 200V C0G/NP0 RAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C316C182F2G5TA

Applications	General Purpose
Capacitance	1800 pF
Features	Low ESL
Height - Seated (Max) [Max] [z]	5.84 mm
Height - Seated (Max) [Max] [z]	0.23 in
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.15 "
Size / Dimension [x]	3.81 mm
Size / Dimension [y]	0.1 in
Size / Dimension [y]	2.54 mm
Temperature Coefficient	NP0, C0G
Tolerance	1 %
Voltage - Rated	200 V

C316C Series

...

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Temperature Coefficient	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Lead Spacing	Lead Spacing	Features	Package / Case	Lead Style	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Rated	Applications
KEMET C316C399CAG5TA7301	5.84 mm	0.23 in	3.9 pF	C0G NP0	0.25 pF	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	Low ESL	Radial	Formed Leads - Kinked	0.15 "	3.81 mm	0.1 in	2.54 mm	250 V	General Purpose
KEMET C316C510F3G5TA7301	5.84 mm	0.23 in	51 pF	C0G NP0	1 %	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	Low ESL	Radial	Formed Leads - Kinked	0.15 "	3.81 mm	0.1 in	2.54 mm	25 VDC	General Purpose
KEMET C316C391GAG5TA7301	5.84 mm	0.23 in	390 pF	C0G NP0	2 %	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	Low ESL	Radial	Formed Leads - Kinked	0.15 "	3.81 mm	0.1 in	2.54 mm	250 V	General Purpose
KEMET C316C202J3G5TA	5.84 mm	0.23 in	2000 pF	C0G NP0	5 %	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	Low ESL	Radial	Formed Leads - Kinked	0.15 "	3.81 mm	0.1 in	2.54 mm	25 VDC	General Purpose
KEMET C316C139B3G5TA7301	5.84 mm	0.23 in	1.3 pF	C0G NP0	0.1 pF	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	Low ESL	Radial	Formed Leads - Kinked	0.15 "	3.81 mm	0.1 in	2.54 mm	25 VDC	General Purpose
KEMET C316C392J1G5TA7301	5.84 mm	0.23 in	3900 pF	C0G NP0	5 %	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	Low ESL	Radial	Formed Leads - Kinked	0.15 "	3.81 mm	0.1 in	2.54 mm	100 V	General Purpose
KEMET C316C122F2G5TA	5.84 mm	0.23 in	1200 pF	C0G NP0	1 %	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	Low ESL	Radial	Formed Leads - Kinked	0.15 "	3.81 mm	0.1 in	2.54 mm	200 V	General Purpose
KEMET C316C182F2G5TA	5.84 mm	0.23 in	1800 pF	C0G NP0	1 %	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	Low ESL	Radial	Formed Leads - Kinked	0.15 "	3.81 mm	0.1 in	2.54 mm	200 V	General Purpose
KEMET C316C471F3G5TA	5.84 mm	0.23 in	470 pF	C0G NP0	1 %	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	Low ESL	Radial	Formed Leads - Kinked	0.15 "	3.81 mm	0.1 in	2.54 mm	25 VDC	General Purpose
KEMET C316C201G3G5TA7301	5.84 mm	0.23 in	200 pF	C0G NP0	2 %	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	Low ESL	Radial	Formed Leads - Kinked	0.15 "	3.81 mm	0.1 in	2.54 mm	25 VDC	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.14

Description

General part information

C316C Series

1800 pF ±1% 200V Ceramic Capacitor C0G, NP0 Radial
