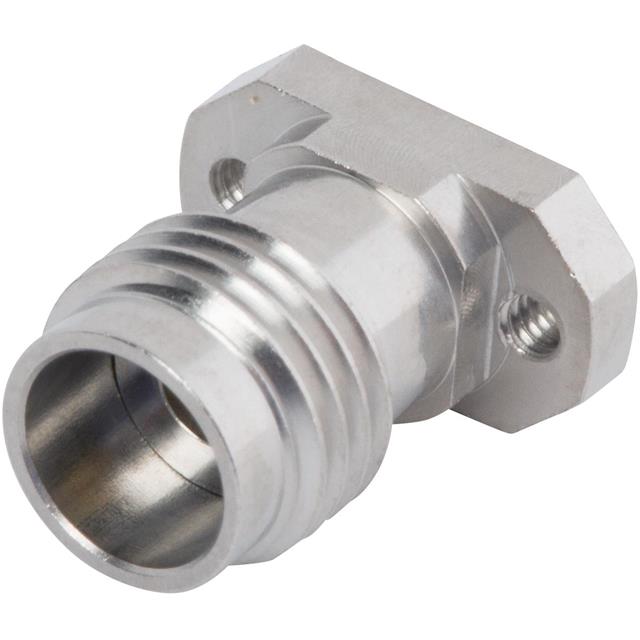

SF1621-60049

Active

Amphenol SV Microwave

CONN 2.4MM JACK 50 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

SF1621-60049

Active

Amphenol SV Microwave

CONN 2.4MM JACK 50 OHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF1621-60049

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Female Socket, Jack
Contact Termination	Compression
Frequency - Max [Max]	50 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw

SF1621 Series

Part	Mounting Feature	Number of Ports	Contact Termination	Connector Style	Connector Style	Connector Style	Center Contact Material	Connector Type	Mating Cycles	Shield Termination	Impedance	Body Material	Features	Housing Color	Frequency - Max [Max]	Dielectric Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Cable Group	Includes	Mounting Type
Amphenol SV Microwave SF1621-60017	Flange	1	Compression	OS-50	2.4 mm	APC-2.4	Beryllium Copper	Female Socket Jack	500	Screw	50 Ohms	Stainless Steel	Field Replaceable For Hermetically Sealed Pin	Silver	50 GHz	Polyetherimide (PEI)	Gold
Amphenol SV Microwave SF1621-60005	Bulkhead - Front Side Nut	1	Solder	OS-50	2.4 mm	APC-2.4	Beryllium Copper	Female Socket Jack	500	Solder	50 Ohms	Stainless Steel		Silver	50 GHz	Polyetherimide (PEI)	Gold	-55 °C	125 °C	Flexible	0.047 in	1 Connector 1 Lockwasher 1 Nut
Amphenol SV Microwave SF1621-60029-1S	Flange	1	Compression	OS-50	2.4 mm	APC-2.4	Beryllium Copper	Female Socket Jack	500	Screw	50 Ohms	Stainless Steel	Mounting Hardware	Silver	50 GHz	Polyetherimide (PEI)	Gold	-65 ░C	165 °C			1 Connector 2 Screws	Surface Mount
Amphenol SV Microwave SF1621-60009		1		OS-50	2.4 mm	APC-2.4	Beryllium Copper	Female Socket Jack		Clamp	50 Ohms	Stainless Steel		Silver	50 GHz	Polyetherimide (PEI)	Gold			RG-405	0.085 in		Free Hanging (In-Line)
Amphenol SV Microwave SF1621-60049	Flange	1	Compression	OS-50	2.4 mm	APC-2.4	Beryllium Copper	Female Socket Jack	500	Screw	50 Ohms	Stainless Steel		Silver	50 GHz		Gold	-65 ░C	165 °C				Surface Mount
Amphenol SV Microwave SF1621-60026	Flange	1	Compression	OS-50	2.4 mm	APC-2.4	Beryllium Copper	Female Socket Jack	500	Screw	50 Ohms	Stainless Steel		Silver	50 GHz	Polyetherimide (PEI)	Gold	-65 ░C	165 °C				Surface Mount
Amphenol SV Microwave SF1621-60029	Flange	1	Compression	OS-50	2.4 mm	APC-2.4	Beryllium Copper	Female Socket Jack	500	Screw	50 Ohms	Stainless Steel		Silver	50 GHz	Polyetherimide (PEI)	Gold	-65 ░C	165 °C				Surface Mount
Amphenol SV Microwave SF1621-60003	Flange	1	Compression	OS-50	2.4 mm	APC-2.4	Beryllium Copper	Female Socket Jack		Screw	50 Ohms	Stainless Steel		Silver	50 GHz	Polyetherimide (PEI)	Gold						Surface Mount
Amphenol SV Microwave SF1621-60029-2S	Flange	1	Compression	OS-50	2.4 mm	APC-2.4	Beryllium Copper	Female Socket Jack	500	Screw	50 Ohms	Stainless Steel	Mounting Hardware	Silver	50 GHz	Polyetherimide (PEI)	Gold	-65 ░C	165 °C			1 Connector 2 Screws	Surface Mount
Amphenol SV Microwave SF1621-60026-1S	Flange	1	Compression	OS-50	2.4 mm	APC-2.4	Beryllium Copper	Female Socket Jack	500	Screw	50 Ohms	Stainless Steel	Mounting Hardware	Silver	50 GHz	Polyetherimide (PEI)	Gold	-65 ░C	165 °C			1 Connector 2 Screws	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 49.55

Description

General part information

SF1621 Series

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Surface Mount Compression

Documents

Technical documentation and resources

No documents available
