CPDVR083V3UA-HF

Active

Comchip Technology

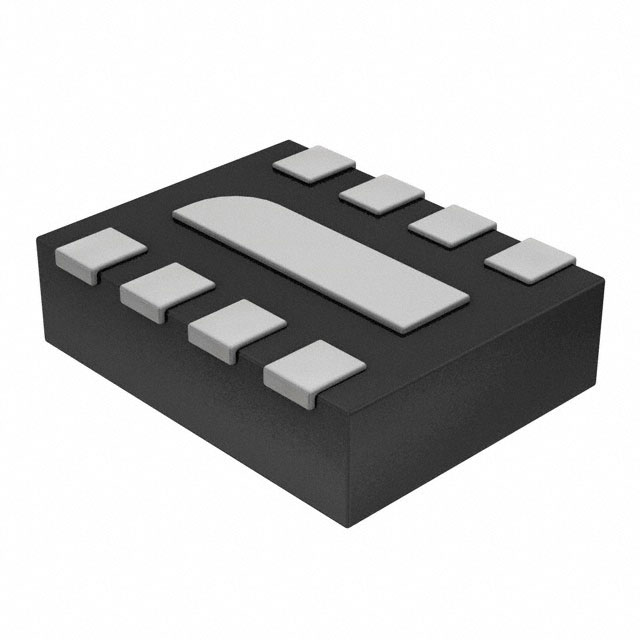

TVS DIODE 3.3VWM 8VC SOT383F

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 3.3VWM 8VC SOT383F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPDVR083V3UA-HF	CPDVR083 Series

Applications	General Purpose	General Purpose
Capacitance @ Frequency	25 pF	25 pF
Current - Peak Pulse (10/1000µs)	5 A	5 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SOT-383F	SOT-383F
Power - Peak Pulse	40 W	40 W
Power Line Protection	False	False
Supplier Device Package	SOT-383F	SOT-383F
Type	Zener	Zener
Unidirectional Channels [custom]	4	4
Voltage - Clamping (Max) @ Ipp [Max]	8 V	8 V
Voltage - Reverse Standoff (Typ)	3.3 V	3.3 V

TVS DIODE 3.3VWM 8VC SOT383F

Part	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Type	Package / Case	Power Line Protection	Capacitance @ Frequency	Unidirectional Channels [custom]	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Supplier Device Package
Comchip Technology CPDVR083V3UA-HF	3.3 V	125 ¯C	-55 °C	General Purpose	Surface Mount	8 V	Zener	SOT-383F		25 pF	4	40 W	5 A	SOT-383F
Comchip Technology CPDVR083V3UA	3.3 V	125 ¯C	-55 °C	General Purpose	Surface Mount	8 V	Zener	SOT-383F		25 pF	4	40 W	5 A	SOT-383F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-383F
