STG3482QTR

Obsolete

STMicroelectronics

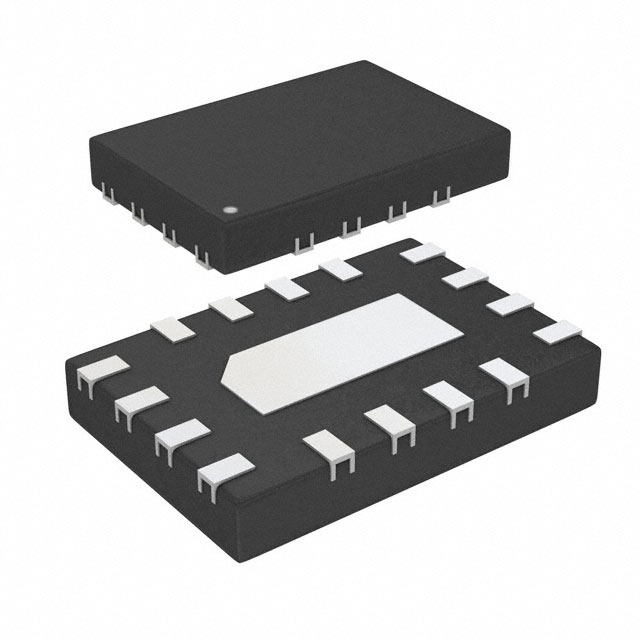

IC SWITCH SP4T X 2 5.2OHM 16QFN

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC SWITCH SP4T X 2 5.2OHM 16QFN

Technical Specifications

Parameters and characteristics for this part

Specification	STG3482QTR

-3db Bandwidth	300 MHz
Channel-to-Channel Matching (ΔRon)	300 mOhm
Charge Injection	11 pC
Crosstalk	-77 dB
Current - Leakage (IS(off)) (Max)	20 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max) [Max]	5.2 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-UFQFN Exposed Pad
Supplier Device Package	16-QFN
Supplier Device Package [x]	2.6
Supplier Device Package [y]	1.8
Switch Circuit	SP4T
Switch Time (Ton, Toff) (Max) [custom]	15 ns
Switch Time (Ton, Toff) (Max) [custom]	18 ns
Voltage - Supply, Single (V+) [Max]	4.3 V
Voltage - Supply, Single (V+) [Min]	1.65 V

Part	Mounting Type	Multiplexer/Demultiplexer Circuit	Switch Circuit	On-State Resistance (Max) [Max]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Package / Case	Channel-to-Channel Matching (ΔRon)	Current - Leakage (IS(off)) (Max)	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Number of Circuits	Charge Injection	Crosstalk	-3db Bandwidth	Operating Temperature [Max]	Operating Temperature [Min]
STMicroelectronics STG3482QTR	Surface Mount	4:1	SP4T	5.2 Ohm	4.3 V	1.65 V	16-UFQFN Exposed Pad	300 mOhm	20 nA	16-QFN	2.6	1.8	15 ns	18 ns	2	11 pC	-77 dB	300 MHz	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Circuit IC Switch 4:1 5.2Ohm 16-QFN (2.6x1.8)
