EEG.1B.307.CLN
ActiveLEMO
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EEG.1B.307.CLN
ActiveLEMO
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EEG.1B.307.CLN | EEG.1B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 7 A | 2 - 15 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 7 | 1 - 14 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 307 | 302 - 314 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder, Crimp |
EEG.1B Series
CONN RCPT FMALE 10POS GOLD SLDR
| Part | Shell Finish | Connector Type | Shell Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Color | Current Rating (Amps) | Fastening Type | Material Flammability Rating | Mounting Feature | Ingress Protection | Shell Size - Insert | Contact Finish - Mating | Termination | Primary Material | Insert Material | Mounting Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EEG.1B.310.CLN | Chrome | Receptacle, Female Sockets | Brass | 10 | -55 °C | 250 °C | Bronze | 59 Áin | 1.5 Ám | G | Silver | 2.5 A | Push-Pull | UL94 V-0 | Bulkhead - Front Side Nut | IP50 | 310 | Gold | Solder | Metal | Polyetheretherketone (PEEK) | Panel Mount, Through Hole | Shielded |
LEMO EEG.1B.304.CLV | Chrome | Receptacle, Female Sockets | Brass | 4 | -55 °C | 250 °C | Bronze | 59 Áin | 1.5 Ám | G | Silver | 6 A | Push-Pull | UL94 V-0 | Bulkhead - Front Side Nut | IP50 | 304 | Gold | Solder | Metal | Polyetheretherketone (PEEK) | Panel Mount, Right Angle, Through Hole | Shielded |
LEMO EEG.1B.307.CLN | Chrome | Receptacle, Female Sockets | Brass | 7 | -55 °C | 250 °C | Bronze | 59 Áin | 1.5 Ám | G | Silver | 7 A | Push-Pull | UL94 V-0 | Bulkhead - Front Side Nut | IP50 | 307 | Gold | Solder | Metal | Polyetheretherketone (PEEK) | Panel Mount, Through Hole | Shielded |
LEMO EEG.1B.314.CLN | Chrome | Receptacle, Female Sockets | Brass | 14 | -55 °C | 250 °C | Bronze | 59 Áin | 1.5 Ám | G | Silver | 2 A | Push-Pull | UL94 V-0 | Bulkhead - Front Side Nut | IP50 | 314 | Gold | Solder | Metal | Polyetheretherketone (PEEK) | Panel Mount, Through Hole | Shielded |
LEMO EEG.1B.307.CYM | Chrome | Receptacle, Female Sockets | Brass | 7 | -55 °C | 250 °C | Bronze | 59 Áin | 1.5 Ám | G | Silver | 7 A | Push-Pull | UL94 V-0 | Bulkhead - Front Side Nut | IP50 | 307 | Gold | Crimp | Metal | Polyetheretherketone (PEEK) | Shielded | |
LEMO EEG.1B.302.CLL | Chrome | Receptacle, Female Sockets | Brass | 2 | -55 °C | 250 °C | Bronze | 59 Áin | 1.5 Ám | G | Silver | 15 A | Push-Pull | UL94 V-0 | Bulkhead - Front Side Nut | IP50 | 302 | Gold | Metal | Polyetheretherketone (PEEK) | Shielded | ||
LEMO EEG.1B.307.CLL | Chrome | Receptacle, Female Sockets | Brass | 7 | -55 °C | 250 °C | Bronze | 59 Áin | 1.5 Ám | G | Silver | 7 A | Push-Pull | UL94 V-0 | Bulkhead - Front Side Nut | IP50 | 307 | Gold | Metal | Polyetheretherketone (PEEK) | Shielded | ||
LEMO EEG.1B.308.CLN | Chrome | Receptacle, Female Sockets | Brass | 8 | -55 °C | 250 °C | Bronze | 59 Áin | 1.5 Ám | G | Silver | 5 A | Push-Pull | UL94 V-0 | Bulkhead - Front Side Nut | IP50 | 308 | Gold | Solder | Metal | Polyetheretherketone (PEEK) | Panel Mount, Through Hole | Shielded |
LEMO EEG.1B.304.CYM | Chrome | Receptacle, Female Sockets | Brass | 4 | -55 °C | 250 °C | Bronze | 59 Áin | 1.5 Ám | G | Silver | 10 A | Push-Pull | UL94 V-0 | Bulkhead - Front Side Nut | IP50 | 304 | Gold | Crimp | Metal | Polyetheretherketone (PEEK) | Shielded | |
LEMO EEG.1B.305.CLV | Chrome | Receptacle, Female Sockets | Brass | -55 °C | 250 °C | Bronze | 59 Áin | 1.5 Ám | G | Silver | 6 A | Push-Pull | UL94 V-0 | Bulkhead - Front Side Nut | IP50 | 305 | Gold | Solder | Metal | Polyetheretherketone (PEEK) | Panel Mount, Right Angle, Through Hole | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EEG.1B Series

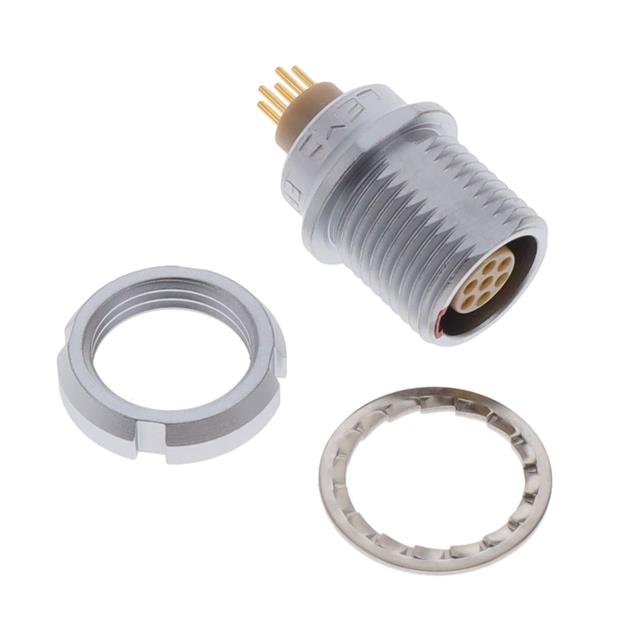

7 Position Circular Connector Receptacle, Female Sockets Solder
