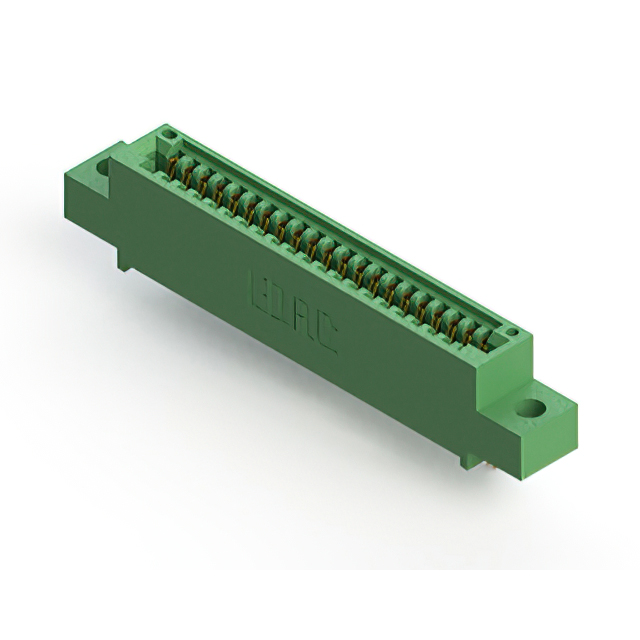

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 21 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-021-500-404
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 21 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-021-500-404 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 21 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
345-021 Series
...
| Part | Gender | Flange Feature | Material - Insulation | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Pitch [x] | Pitch [x] | Termination Rows | Number of Rows | Contact Material | Card Type | Number of Positions | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Wire Wrap | 10 Áin | 0.25 Ám | Through Hole Right Angle | 2.54 mm | 0.1 in | 1 | 1 | Copper Alloy | Non Specified - Single Edge | 21 | Card Guides | ||
EDAC Inc. | Female | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Solder | 10 Áin | 0.25 Ám | Through Hole Right Angle | 2.54 mm | 0.1 in | 1 | 1 | Copper Alloy | Non Specified - Single Edge | 21 | Card Guides | ||
EDAC Inc. | Female | Top Mount Opening Unthreaded | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Through Hole | 2.54 mm | 0.1 in | 1 | 1 | Copper Alloy | Non Specified - Single Edge | 21 | 0.156 in | 3.96 mm | |
EDAC Inc. | Female | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Solder | 10 Áin | 0.25 Ám | Through Hole | 2.54 mm | 0.1 in | 1 | 1 | Copper Alloy | Non Specified - Single Edge | 21 | |||
EDAC Inc. | Female | Floating Bobbin Top Mount Opening | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Solder | 10 Áin | 0.25 Ám | Through Hole | 2.54 mm | 0.1 in | 1 | 1 | Copper Alloy | Non Specified - Single Edge | 21 | 0.116 in | 2.95 mm | |
EDAC Inc. | Female | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Through Hole | 2.54 mm | 0.1 in | 1 | 1 | Copper Alloy | Non Specified - Single Edge | 21 | |||
EDAC Inc. | Female | Top Mount Opening Unthreaded | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Wire Wrap | 10 Áin | 0.25 Ám | Through Hole | 2.54 mm | 0.1 in | 1 | 1 | Copper Alloy | Non Specified - Single Edge | 21 | 0.156 in | 3.96 mm | |
EDAC Inc. | Female | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Solder | 10 Áin | 0.25 Ám | Through Hole | 2.54 mm | 0.1 in | 1 | 1 | Copper Alloy | Non Specified - Single Edge | 21 | Card Guides | ||
EDAC Inc. | Female | M3 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Wire Wrap | 10 Áin | 0.25 Ám | Through Hole Right Angle | 2.54 mm | 0.1 in | 1 | 1 | Copper Alloy | Non Specified - Single Edge | 21 | |||
EDAC Inc. | Female | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Wire Wrap | 10 Áin | 0.25 Ám | Through Hole Right Angle | 2.54 mm | 0.1 in | 1 | 1 | Copper Alloy | Non Specified - Single Edge | 21 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-021 Series
21 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
