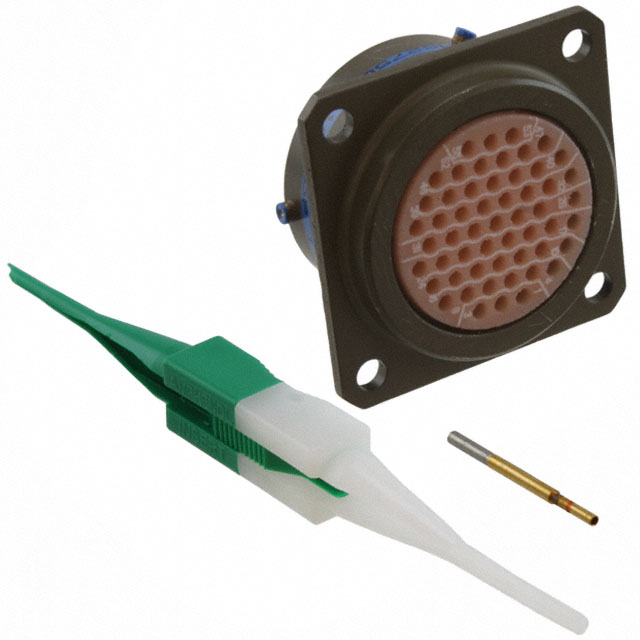

MS27508E16B35P

Active

Amphenol Aerospace Operations

CONN RCPT MALE 55POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 55POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS27508E16B35P

Applications	Aviation, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Plastic
Mounting Feature	Flange
Number of Positions	55 positions
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series II
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	16
Shielding	Unshielded
Termination	Crimp

Part	Orientation	Contact Finish - Mating	Connector Type	Insert Material	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Shell Material	Grade	Contact Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Primary Material	Termination	Applications	Mounting Feature	Fastening Type	Qualification	Contact Shape	Type	Contact Size	Contact Type	Housing Color	Note	Shell Finish
Amphenol Aerospace Operations MS27508E16B35P	N	Gold	Male Pins Receptacle	Plastic	Unshielded	1.27 µm	50 µin	16	35	Environment Resistant	Aluminum	Military	Copper Alloy	Olive Drab	-65 ░C	347 °F	55 positions	Metal	Crimp	Aviation Marine Military	Flange	Bayonet Lock	MIL-DTL-38999 Series II
Amphenol Aerospace Operations MS27508E16B35PALC	A		Receptacle Housing		Unshielded			16	35	Environment Resistant	Aluminum Alloy	Military			-65 ░C	347 °F	55 positions				Flange	Bayonet Lock	MIL-DTL-38999 Series II	Circular	For Male Pins	22D	Crimp	Olive Drab	Contacts Not Included	Cadmium over Nickel
Amphenol Aerospace Operations MS27508E16B35PLC	N		Receptacle Housing		Unshielded			16	35	Environment Resistant	Aluminum Alloy	Military			-65 ░C	347 °F	55 positions				Flange	Bayonet Lock	MIL-DTL-38999 Series II	Circular	For Male Pins	22D	Crimp	Olive Drab	Contacts Not Included	Cadmium over Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

55 Position Circular Connector Receptacle, Male Pins Crimp
