929745-02-05-EU

Active

3M (TC)

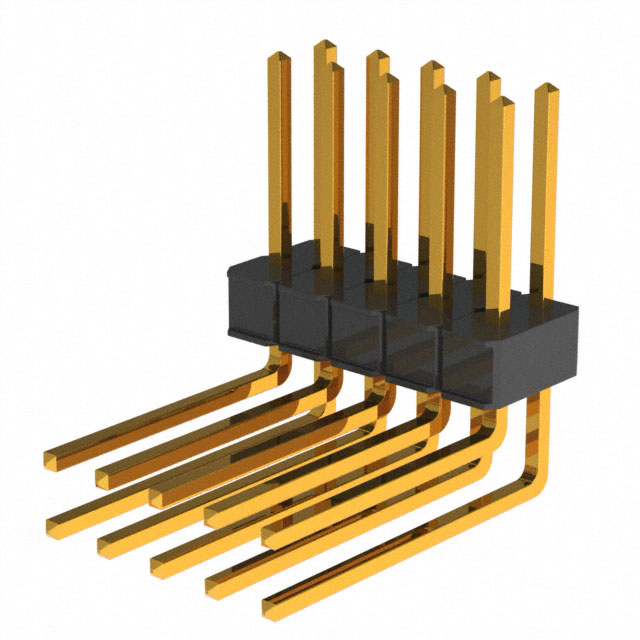

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929745-02-05-EU

Active

3M (TC)

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929745-02-05-EU

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.45 mm
Insulation Height	0.215 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

929745 Series

...

Part	Number of Positions	Insulation Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Number of Positions Loaded	Contact Type	Fastening Type	Material Flammability Rating	Shrouding	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Contact Finish - Post	Contact Material	Contact Length - Post [x]	Contact Length - Post	Termination	Pitch - Mating	Pitch - Mating	Current Rating (Amps)
3M (TC) 929745-01-04-I	8	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	10 çin	0.25 çm	Header	2	-40 °C	105 ░C	10 çin	0.25 çm	Gold	2.54 mm	0.1 in	Black	All	Male Pin	Push-Pull	UL94 V-0	Unshrouded	Square	0.318 "	8.08 mm	5.45 mm	0.215 in	Gold	Copper Alloy	0.11 in	2.79 mm	Solder	0.1 in	2.54 mm	2.5 A
3M (TC) 929745-02-22-I	44	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	10 çin	0.25 çm	Header	2	-40 °C	105 ░C	10 çin	0.25 çm	Gold	2.54 mm	0.1 in	Black	All	Male Pin	Push-Pull	UL94 V-0	Unshrouded	Square	0.318 "	8.08 mm	5.45 mm	0.215 in	Gold	Copper Alloy			Solder	0.1 in	2.54 mm	2.5 A
3M (TC) 929745-01-24-I	48	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	10 çin	0.25 çm	Header	2	-40 °C	105 ░C	10 çin	0.25 çm	Gold	2.54 mm	0.1 in	Black	All	Male Pin	Push-Pull	UL94 V-0	Unshrouded	Square	0.318 "	8.08 mm	5.45 mm	0.215 in	Gold	Copper Alloy	0.11 in	2.79 mm	Solder	0.1 in	2.54 mm	2.5 A
3M (TC) 929745-01-16-I		Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	10 çin	0.25 çm	Header	2	-40 °C	105 ░C	10 çin	0.25 çm	Gold	2.54 mm	0.1 in	Black	All	Male Pin	Push-Pull	UL94 V-0	Unshrouded	Square	0.318 "	8.08 mm	5.45 mm	0.215 in	Gold	Copper Alloy	0.11 in	2.79 mm	Solder	0.1 in	2.54 mm	2.5 A
3M (TC) 929745-01-35-EU	70	Polycyclohexylenedimethylene Terephthalate (PCT)	Through Hole Right Angle	10 çin	0.25 çm	Header	2	-40 °C	105 ░C	10 çin	0.25 çm	Gold	2.54 mm	0.1 in	Black	All	Male Pin	Push-Pull	UL94 V-0	Unshrouded	Square	0.318 "	8.08 mm	5.45 mm	0.215 in	Gold	Copper Alloy	0.11 in	2.79 mm	Solder	0.1 in	2.54 mm	2.5 A
3M (TC) 929745-02-26-I	52	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	10 çin	0.25 çm	Header	2	-40 °C	105 ░C	10 çin	0.25 çm	Gold	2.54 mm	0.1 in	Black	All	Male Pin	Push-Pull	UL94 V-0	Unshrouded	Square	0.318 "	8.08 mm	5.45 mm	0.215 in	Gold	Copper Alloy			Solder	0.1 in	2.54 mm	2.5 A
3M (TC) 929745-01-21-EU	42	Polycyclohexylenedimethylene Terephthalate (PCT)	Through Hole Right Angle	10 çin	0.25 çm	Header	2	-40 °C	105 ░C	10 çin	0.25 çm	Gold	2.54 mm	0.1 in	Black	All	Male Pin	Push-Pull	UL94 V-0	Unshrouded	Square	0.318 "	8.08 mm	5.45 mm	0.215 in	Gold	Copper Alloy	0.11 in	2.79 mm	Solder	0.1 in	2.54 mm	2.5 A
3M (TC) 929745-02-31-EU	62	Polycyclohexylenedimethylene Terephthalate (PCT)	Through Hole Right Angle	10 çin	0.25 çm	Header	2	-40 °C	105 ░C	10 çin	0.25 çm	Gold	2.54 mm	0.1 in	Black	All	Male Pin	Push-Pull	UL94 V-0	Unshrouded	Square	0.318 "	8.08 mm	5.45 mm	0.215 in	Gold	Copper Alloy			Solder	0.1 in	2.54 mm	2.5 A
3M (TC) 929745-01-16-EU		Polycyclohexylenedimethylene Terephthalate (PCT)	Through Hole Right Angle	10 çin	0.25 çm	Header	2	-40 °C	105 ░C	10 çin	0.25 çm	Gold	2.54 mm	0.1 in	Black	All	Male Pin	Push-Pull	UL94 V-0	Unshrouded	Square	0.318 "	8.08 mm	5.45 mm	0.215 in	Gold	Copper Alloy	0.11 in	2.79 mm	Solder	0.1 in	2.54 mm	2.5 A
3M (TC) 929745-02-05-EU	10	Polycyclohexylenedimethylene Terephthalate (PCT)	Through Hole Right Angle	10 çin	0.25 çm	Header	2	-40 °C	105 ░C	10 çin	0.25 çm	Gold	2.54 mm	0.1 in	Black	All	Male Pin	Push-Pull	UL94 V-0	Unshrouded	Square	0.318 "	8.08 mm	5.45 mm	0.215 in	Gold	Copper Alloy			Solder	0.1 in	2.54 mm	2.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.17
		10	$ 1.89
		100	$ 1.69
		500	$ 1.41
		1000	$ 1.21
		5000	$ 1.07

Description

General part information

929745 Series

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
