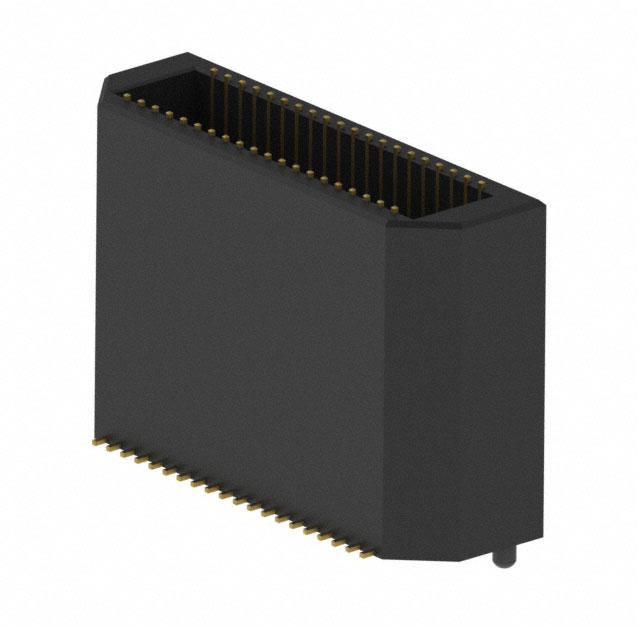

BTE-020-09-H-D-A-K-TR

Active

Samtec Inc.

CONN HDR 40POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBTE (-01/2/3/7/8/9 Lead Style) SMT Footprint Datasheet

BTE-020-09-H-D-A-K-TR

Active

Samtec Inc.

CONN HDR 40POS SMD GOLD

Deep-Dive with AI

DocumentsBTE (-01/2/3/7/8/9 Lead Style) SMT Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTE-020-09-H-D-A-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board	0.522 in
Height Above Board	13.25 mm
Mated Stacking Heights	14 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BTE-020 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Mated Stacking Heights	Number of Positions	Features	Contact Finish	Mounting Type	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board	Mated Stacking Heights [z]
Samtec Inc. BTE-020-01-H-D-A-K-TR	0.76 Ám	30 Áin	2	0.8 mm	0.031 in	Header Outer Shroud Contacts	5.03 mm	40	Board Guide	Gold	Surface Mount
Samtec Inc. BTE-020-05-L-D-A-K	0.25 Ám	10 Áin	2	0.8 mm	0.031 in	Header Outer Shroud Contacts	19.1 mm	40	Board Guide	Gold	Surface Mount	0.719 in	18.26 mm
Samtec Inc. BTE-020-01-L-D-ME2	0.25 Ám	10 Áin	2	0.8 mm	0.031 in	Header Outer Shroud Contacts		40		Gold	Board Edge Right Angle Surface Mount
Samtec Inc. BTE-020-03-L-D-A-K	0.25 Ám	10 Áin	2	0.8 mm	0.031 in	Header Outer Shroud Contacts	11.03 mm	40	Board Guide	Gold	Surface Mount	0.396 in	10.06 mm
Samtec Inc. BTE-020-09-H-D-A-K-TR	0.76 Ám	30 Áin	2	0.8 mm	0.031 in	Header Outer Shroud Contacts	14 mm	40	Board Guide	Gold	Surface Mount			0.522 in	13.25 mm
Samtec Inc. BTE-020-02-F-D-A-K-TR	0.076 Ám	3 Áin	2	0.8 mm	0.031 in	Header Outer Shroud Contacts		40	Board Guide	Gold	Surface Mount			0.278 "	7.06 mm	8.03 mm
Samtec Inc. BTE-020-05-H-D-A-K	0.76 Ám	30 Áin	2	0.8 mm	0.031 in	Header Outer Shroud Contacts	19.1 mm	40	Board Guide	Gold	Surface Mount	0.719 in	18.26 mm
Samtec Inc. BTE-020-02-L-D	0.25 Ám	10 Áin	2	0.8 mm	0.031 in	Header Outer Shroud Contacts		40		Gold	Surface Mount			0.278 "	7.06 mm	8.03 mm
Samtec Inc. BTE-020-02-L-D-A	0.25 Ám	10 Áin	2	0.8 mm	0.031 in	Header Outer Shroud Contacts		40	Board Guide	Gold	Surface Mount			0.278 "	7.06 mm	8.03 mm
Samtec Inc. BTE-020-01-F-D-A-TR	0.076 Ám	3 Áin	2	0.8 mm	0.031 in	Header Outer Shroud Contacts	5.03 mm	40	Board Guide	Gold	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	125	$ 10.20

Description

General part information

BTE-020 Series

40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

BTE (-01/2/3/7/8/9 Lead Style) SMT Footprint

Datasheet
