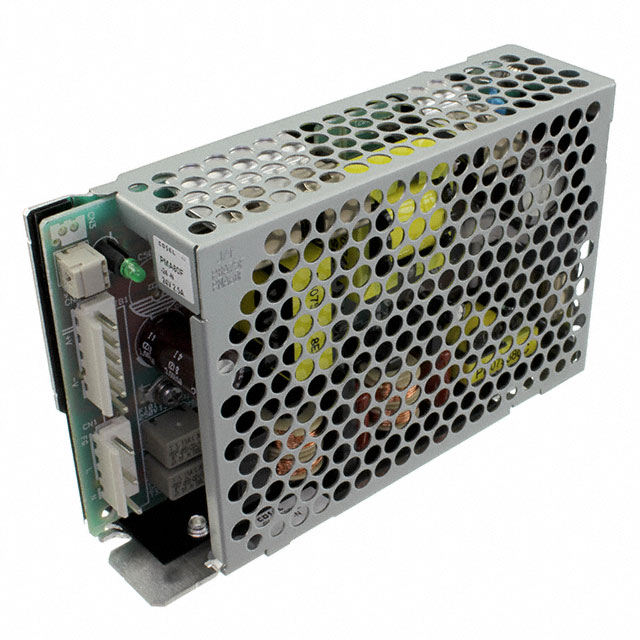

PMA60F-24-N

Active

Cosel USA, Inc.

AC/DC CONVERTER 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PMA60F-24-N

Active

Cosel USA, Inc.

AC/DC CONVERTER 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PMA60F-24-N

Applications	Medical
Approval Agency	cURus, CE, TUV
Current - Output 1	2.5 A
Efficiency	83 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Size / Dimension [x]	5.31 "
Size / Dimension [x]	134.9 mm
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	3.23 in
Size / Dimension [z]	82 mm
Type	Enclosed
Voltage - Isolation	2000 V
Voltage - Output 1	24 V

PMA60F Series

Part	Efficiency	Type	Applications	Voltage - Output 1	Number of Outputs	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Isolation	Approval Agency	Current - Output 1	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
Cosel USA, Inc. PMA60F-5-T	83 %	Open Frame	Medical	5 V	1	-10 °C	158 °F	2000 V	CE cURus TUV	12 A	Chassis Mount	5.31 "	32 mm	134.9 mm	3.23 in	1.26 in	82 mm
Cosel USA, Inc. PMA60F-12		Open Frame	Medical	12 V	1	-10 °C	158 °F	2000 V	CE cURus TUV	5 A	Chassis Mount	5.31 "	32 mm	134.9 mm	3.23 in	1.26 in	82 mm
Cosel USA, Inc. PMA60F-12-J1		Open Frame	Medical	12 V	1	-10 °C	158 °F	2000 V	CE cURus TUV	5 A	Chassis Mount	5.31 "	32 mm	134.9 mm	3.23 in	1.26 in	82 mm
Cosel USA, Inc. PMA60F-3R3-J1	78 %	Open Frame	Medical	3.3 V	1	-10 °C	158 °F	2000 V	CE cURus TUV	12 A	Chassis Mount	5.31 "	32 mm	134.9 mm	3.23 in	1.26 in	82 mm
Cosel USA, Inc. PMA60F-12-T1N		Enclosed	Medical	12 V	1	-10 °C	158 °F	2000 V	CE cURus TUV	5 A	Chassis Mount	5.31 "	32 mm	134.9 mm	3.23 in	1.26 in	82 mm
Cosel USA, Inc. PMA60F-24-N	83 %	Enclosed	Medical	24 V	1	-10 °C	158 °F	2000 V	CE cURus TUV	2.5 A	Chassis Mount	5.31 "	32 mm	134.9 mm	3.23 in	1.26 in	82 mm
Cosel USA, Inc. PMA60F-24-T1N	83 %	Enclosed	Medical	24 V	1	-10 °C	158 °F	2000 V	CE cURus TUV	2.5 A	Chassis Mount	5.31 "	32 mm	134.9 mm	3.23 in	1.26 in	82 mm
Cosel USA, Inc. PMA60F-5-T1	83 %	Open Frame	Medical	5 V	1	-10 °C	158 °F	2000 V	CE cURus TUV	12 A	Chassis Mount	5.31 "	32 mm	134.9 mm	3.23 in	1.26 in	82 mm
Cosel USA, Inc. PMA60F-24-J1	83 %	Open Frame	Medical	24 V	1	-10 °C	158 °F	2000 V	CE cURus TUV	2.5 A	Chassis Mount	5.31 "	32 mm	134.9 mm	3.23 in	1.26 in	82 mm
Cosel USA, Inc. PMA60F-24	83 %	Open Frame	Medical	24 V	1	-10 °C	158 °F	2000 V	CE cURus TUV	2.5 A	Chassis Mount	5.31 "	32 mm	134.9 mm	3.23 in	1.26 in	82 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 121.34
		5	$ 114.32
		10	$ 111.42
		25	$ 107.70
		50	$ 104.97

Description

General part information

PMA60F Series

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
