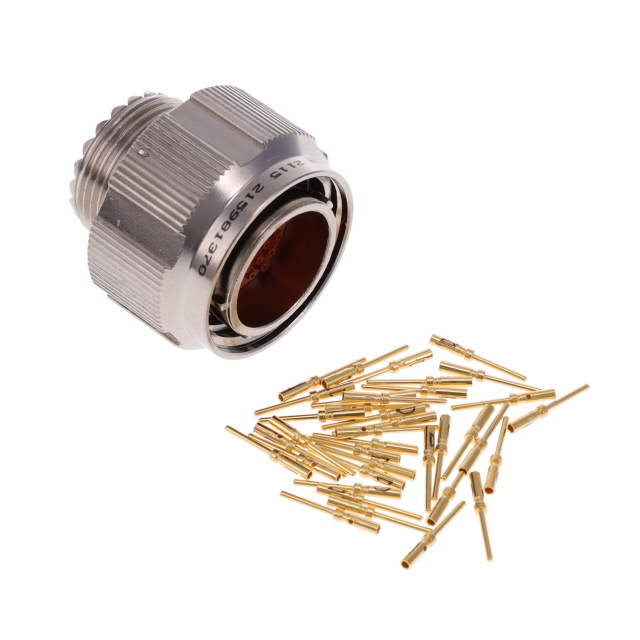

2M801-008-16M13-37PA

Active

Amphenol Aerospace Operations

2M801 37C 37#23 PIN PLUG THRD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2M801-008-16M13-37PA

Active

Amphenol Aerospace Operations

2M801 37C 37#23 PIN PLUG THRD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 329.92
		10	$ 259.23
		25	$ 236.95

Description

General part information

2M801-008 Series

37 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2M801-008-16M13-37PA	2M801-008 Series

Color	Silver	Silver, Olive Drab, Black
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 - 13 A
Features	Coupling Nut	Coupling Nut, Self Locking
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	37	2 - 37
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	A, B
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel, Olive Drab Cadmium, Black Zinc Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	-	13-7, 8-2
Shell Size - Insert [Max]	37	13 - 210
Shell Size - Insert [Min]	13	8 - 13
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

2M801-008 Series

2M801 37C 37#23 PIN PLUG THRD

Part	Insert Material	Shell Material	Mounting Type	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Finish	Contact Finish - Mating	Connector Type	Contact Material	Features	Termination	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Current Rating (Amps)	Primary Material	Shell Size - Insert
Amphenol Aerospace Operations 2M801-008-16M13-37PA	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	37	13	37	Electroless Nickel	Gold	Male Pins, Plug	Copper Alloy	Coupling Nut	Crimp	IP67 - Dust Tight, Waterproof	Silver	-65 ░C	150 °C	A	5 A	Metal
Amphenol Aerospace Operations 2M801-008-26NF9-210SA	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	10	9	210	Olive Drab Cadmium	Gold	Female Sockets, Plug	Copper Alloy	Coupling Nut, Self Locking	Crimp	IP67 - Dust Tight, Waterproof	Olive Drab	-65 ░C	150 °C	A	7.5 A	Metal
Amphenol Aerospace Operations 2M801-008-16M13-37PB	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	37	13	37	Electroless Nickel	Gold	Male Pins, Plug	Copper Alloy	Coupling Nut	Crimp	IP67 - Dust Tight, Waterproof	Silver	-65 ░C	150 °C	B	5 A	Metal
Amphenol Aerospace Operations 2M801-008-16ZNU13-7PB	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	7			Black Zinc Nickel	Gold	Male Pins, Plug	Copper Alloy	Coupling Nut	Crimp	IP67 - Dust Tight, Waterproof	Black	-65 ░C	150 °C	B	13 A	Metal	13-7
Amphenol Aerospace Operations 2M801-008-16ZNU8-2PB	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	2			Black Zinc Nickel	Gold	Male Pins, Plug	Copper Alloy	Coupling Nut	Crimp	IP67 - Dust Tight, Waterproof	Black	-65 ░C	150 °C	B	13 A	Metal	8-2
Amphenol Aerospace Operations 2M801-008-26M8-13SA	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	13	8	13	Electroless Nickel	Gold	Female Sockets, Plug	Copper Alloy	Coupling Nut, Self Locking	Crimp	IP67 - Dust Tight, Waterproof	Silver	-65 ░C	150 °C	A	5 A	Metal
