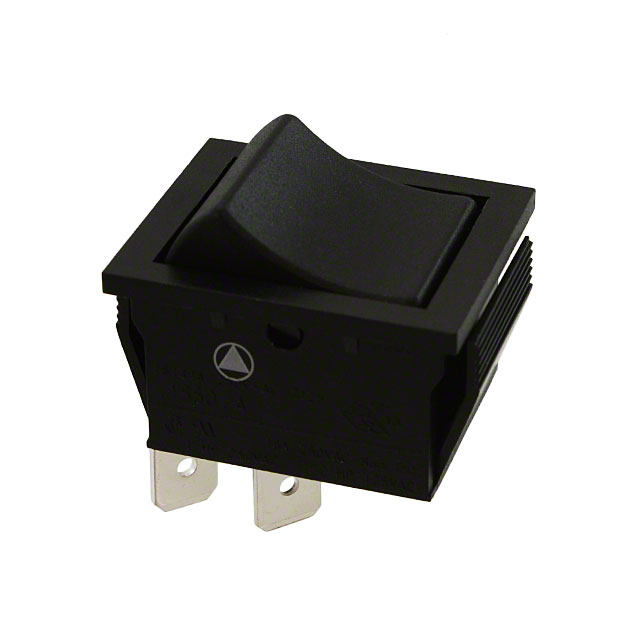

C1550WABB-B
ActiveBULGIN LIMITED
SWITCH ROCKER DPST 16A 250V
Deep-Dive with AI
Search across all available documentation for this part.
C1550WABB-B
ActiveBULGIN LIMITED
SWITCH ROCKER DPST 16A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1550WABB-B |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A, 10 A |
| Features | Antimicrobial |
| Ingress Protection | Splash Proof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.3 mm |
| Panel Cutout Dimensions [y] | 22.4 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 8.48 | |
Description
General part information
C1550WA Series
Rocker Switch DPST 16A (AC), 10A (DC) 250 V Panel Mount, Snap-In
