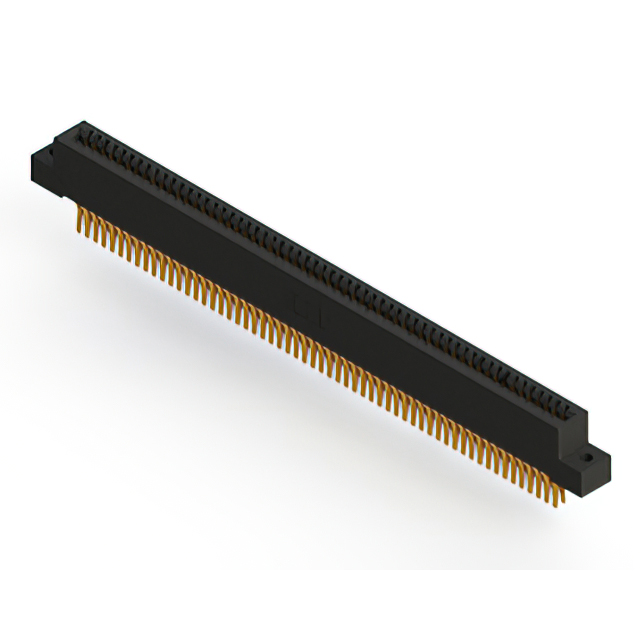

892-116-560-202
ActiveEDAC Inc.
CONN EDGE DUAL FML 116POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-116-560-202
ActiveEDAC Inc.
CONN EDGE DUAL FML 116POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-116-560-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 116 |
| Number of Positions/Bay/Row [custom] | 58 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-116 Series
| Part | Termination Rows | Gender | Mounting Type | Color | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Material - Insulation | Number of Positions | Card Type | Contact Material | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Contact Finish | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Termination | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Female | Through Hole | Black | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Polyphenylene Sulfide (PPS) | 116 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | 125 °C | -40 °C | 58 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Cantilever | |||
EDAC Inc. | 2 | Female | Through Hole | Black | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Polyphenylene Sulfide (PPS) | 116 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | 125 °C | -40 °C | 58 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Cantilever | 0.116 in | 2.95 mm | |
EDAC Inc. | 2 | Female | Board Edge Straddle Mount | Black | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Polyphenylene Sulfide (PPS) | 116 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | 125 °C | -40 °C | 58 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Cantilever | 0.128 " | 3.25 mm | Card Extender |
EDAC Inc. | 2 | Female | Through Hole | Black | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Polyphenylene Sulfide (PPS) | 116 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | 125 °C | -40 °C | 58 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Wire Wrap | Cantilever | |||
EDAC Inc. | 2 | Female | Through Hole | Black | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Polyphenylene Sulfide (PPS) | 116 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | 125 °C | -40 °C | 58 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder Eyelet(s) | Cantilever | 0.116 in | 2.95 mm | |
EDAC Inc. | 2 | Female | Through Hole | Black | 10 Áin | 0.25 Ám | Flush Mount Side Opening Unthreaded | Polyphenylene Sulfide (PPS) | 116 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | 125 °C | -40 °C | 58 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder Eyelet(s) | Cantilever | 0.128 " | 3.25 mm | |
EDAC Inc. | 2 | Female | Through Hole | Black | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Polyphenylene Sulfide (PPS) | 116 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | 125 °C | -40 °C | 58 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Cantilever | 0.156 in | 3.96 mm | |
EDAC Inc. | 2 | Female | Through Hole | Black | 10 Áin | 0.25 Ám | Flush Mount Side Opening Unthreaded | Polyphenylene Sulfide (PPS) | 116 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | 125 °C | -40 °C | 58 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Cantilever | 0.128 " | 3.25 mm | |
EDAC Inc. | 2 | Female | Board Edge Straddle Mount | Black | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 116 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | 125 °C | -40 °C | 58 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Cantilever | Card Extender | |||
EDAC Inc. | 2 | Female | Through Hole | Black | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Polyphenylene Sulfide (PPS) | 116 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | 125 °C | -40 °C | 58 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder Eyelet(s) | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-116 Series
116 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
