ODB13391-24HB10A

Active

Orion Fans

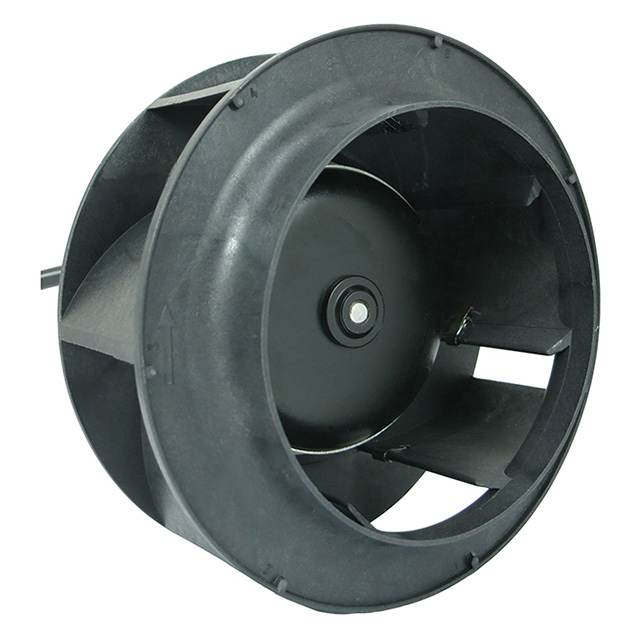

FAN IMP MTRZD 133.5X91MM 24VDC

Search across all available documentation for this part.

Active

Orion Fans

FAN IMP MTRZD 133.5X91MM 24VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ODB13391-24HB10A	ODB13391 Series

Air Flow	257 CFM	257 CFM
Air Flow	7.2 m³/min	7.2 m³/min
Approval Agency	TUV, CE, cURus, UR	TUV, CE, cURus, UR
Bearing Type	Ball	Ball
Current Rating (Amps)	2.65 A	1.25 - 2.65 A
Fan Type	Motorized Impellers	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Thermoplastic	Thermoplastic
Material - Frame	Aluminum	Aluminum
Noise	68 dB	68 dB
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	63.6 W	60 - 63.6 W
RPM	4600 RPM	4600 RPM
Size / Dimension [diameter]	133.5 mm	133.5 mm
Static Pressure	473.3 Pa	473.3 Pa
Static Pressure	1.9 in H2O	1.9 in H2O
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage - Rated	-	48 VDC
Voltage Range [Max]	28 VDC	28 - 56 VDC
Voltage Range [Min]	16 VDC	16 - 36 VDC
Weight	700 g	700 g
Weight	1.543 lb	1.543 lb
Width [y]	91 mm	91 mm

DC MOTORIZED IMPELLER CENTRIFUGAL BALL BEARING 48V 28V TO 52V 326CFM 68DB 133 X 91MM TACHOMETER

Part	Size / Dimension [diameter]	Width [y]	Current Rating (Amps)	Bearing Type	Voltage - Rated [custom]	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	RPM	Termination	Fan Type	Features	Lifetime @ Temp.	Material - Blade	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Static Pressure	Static Pressure	Power (Watts)	Material - Frame	Approval Agency	Voltage - Rated
Orion Fans ODB13391-48HB10A	133.5 mm	91 mm	1.25 A	Ball	48 VDC	36 VDC	56 VDC	257 CFM	7.2 m³/min	4600 RPM	4 Wire Leads	Motorized Impellers	PWM Control, Speed Sensor (Tach)	40000 Hrs	Thermoplastic	68 dB	65 °C	65 °C	-10 °C	-10 °C	700 g	1.543 lb	473.3 Pa	1.9 in H2O	60 W	Aluminum	CE, cURus, TUV, UR
Orion Fans ODB13391-24HB10A	133.5 mm	91 mm	2.65 A	Ball		16 VDC	28 VDC	257 CFM	7.2 m³/min	4600 RPM	4 Wire Leads	Motorized Impellers	PWM Control, Speed Sensor (Tach)	40000 Hrs	Thermoplastic	68 dB	65 °C	65 °C	-10 °C	-10 °C	700 g	1.543 lb	473.3 Pa	1.9 in H2O	63.6 W	Aluminum	CE, cURus, TUV, UR	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 98.27

General part information

Fan Motorized Impellers 24VDC Round - 133.5mm Dia Ball 257.0 CFM (7.20m³/min) 4 Wire Leads
