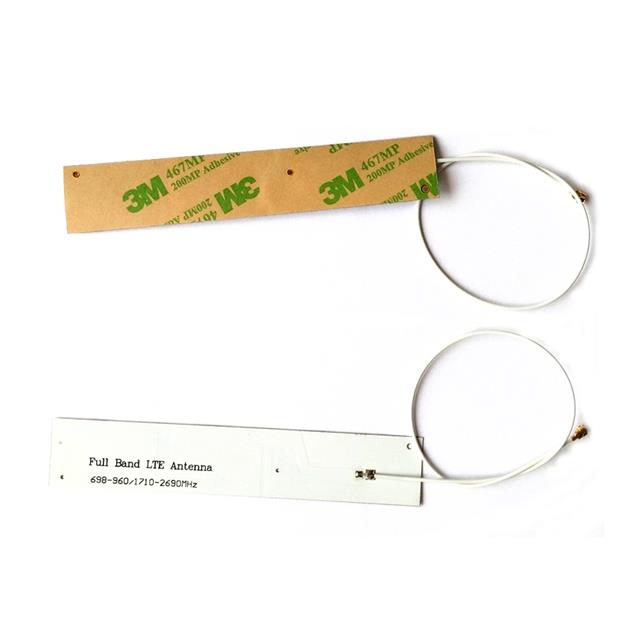

RPCF-MA3-MC5-110020-O-X-001

Active

Raltron Electronics

2G/3G/4G EMBEDDED SMALL FPC ANTE

Search across all available documentation for this part.

Active

Raltron Electronics

2G/3G/4G EMBEDDED SMALL FPC ANTE

Technical Specifications

Parameters and characteristics for this part

2G/3G/4G EMBEDDED SMALL FPC ANTE

Part	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	Frequency (Center/Band)	Gain	Frequency Group	VSWR	Features	Features	Number of Bands	Mounting Type	Ingress Protection	Applications	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Termination
Raltron Electronics RPCF-MA3-MC5-110020-O-X-001	PCB Trace	0.2 mm	0.008 in	2.205 GHz, 829 MHz	3 dBi	Wide Band	3	Cable	100 mm	2	Adhesive	IP60	2G, 3G, 4G, Cellular, Wi-Fi	Cellular, WiFi	2.69 GHz, 960 MHz	1.71 GHz, 698 MHz	IPEX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

829MHz, 2.205GHz 2G, 3G, 4G, Cellular, Wi-Fi PCB Trace RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz 3dBi IPEX Adhesive
