DEB-B083LB6S

Active

Knowles Dielectric Labs

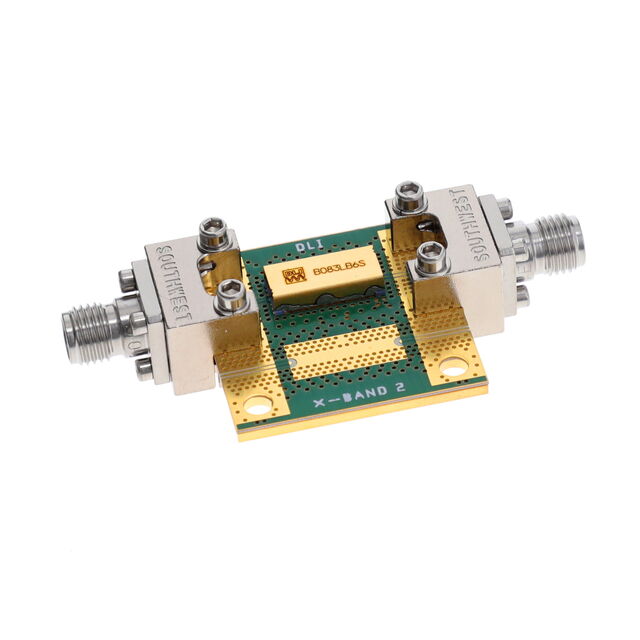

EVAL BOARD FOR B083LB6S

Search across all available documentation for this part.

Active

Knowles Dielectric Labs

EVAL BOARD FOR B083LB6S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

B083LB6S - Filter 8.25GHz Evaluation Board

Technical documentation and resources

No documents available

Specification	DEB-B083LB6S	B083LB Series

Bandwidth	-	500 MHz
Filter Type	-	Band Pass
For Use With/Related Products	B083LB6S	B083LB6S
Frequency	8.25 GHz	8.25 GHz
Height (Max)	-	2.62 mm
Height (Max)	-	0.103 in
Insertion Loss	-	2 dB
Mounting Type	-	Surface Mount
Package / Case	-	2-SMD, No Lead, 3-SMD, No Lead
Size / Dimension	-	0.2 "
Size / Dimension	-	5.08 mm
Size / Dimension	-	0.45 in
Size / Dimension	-	0.45 in
Supplied Contents	Board(s)	Board(s)
Type	Filter	Filter

Part	Frequency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Filter Type	Bandwidth	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Insertion Loss	For Use With/Related Products	Type	Supplied Contents
Knowles Dielectric Labs B083LB6S	8.25 GHz	0.2 "	5.08 mm	0.45 in	0.45 in	2-SMD, No Lead	Band Pass	500 MHz	Surface Mount	2.62 mm	0.103 in	2 dB
Knowles Dielectric Labs DEB-B083LB6S	8.25 GHz												B083LB6S	Filter	Board(s)
Knowles Dielectric Labs B083LB6S-T	8.25 GHz	0.2 "	5.08 mm	0.45 in	0.45 in	3-SMD, No Lead	Band Pass	500 MHz	Surface Mount	2.62 mm	0.103 in	2 dB
