3PN1520B

Active

Staco Energy Products Company

VARIABLE, PLUG IN, 50HZ / 60HZ, 240V, 280V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

3PN1520B

Active

Staco Energy Products Company

VARIABLE, PLUG IN, 50HZ / 60HZ, 240V, 280V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3PN1520B	3PN1520 Series

Constant Current Load - Max	2.66 kVA	2.66 kVA
Constant Current Load - Max [Max]	9.5 A	9.5 A
Input Type	Plug, 6' Cord	Plug, 6' Cord
Output Type	Receptacle	Receptacle
Type	Bench	Bench
Voltage - Output	280 VAC	280 VAC
Voltage - Supply	240 VAC	240 VAC

3PN1520 Series

VARIABLE TRANSFORMER, SINGLE PHASE, 9.5AO, 0-280VO, 2.66KVA, PLUG AND CORD, CASED, BENCH ROHS COMPLIANT: YES

Part	Type	Output Type	Voltage - Supply	Voltage - Output	Constant Current Load - Max	Constant Current Load - Max [Max]	Input Type
Staco Energy Products Company 3PN1520BA	Bench	Receptacle	240 VAC	280 VAC	2.66 kVA	9.5 A	6' Cord, Plug
Staco Energy Products Company 3PN1520B	Bench	Receptacle	240 VAC	280 VAC	2.66 kVA	9.5 A	6' Cord, Plug
Staco Energy Products Company 3PN1520BV	Bench	Receptacle	240 VAC	280 VAC	2.66 kVA	9.5 A	6' Cord, Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1150.00
Newark	Each	1	$ 1234.20
		5	$ 1183.38
		10	$ 1139.82
		25	$ 1081.74
		50	$ 1059.96

Description

General part information

3PN1520 Series

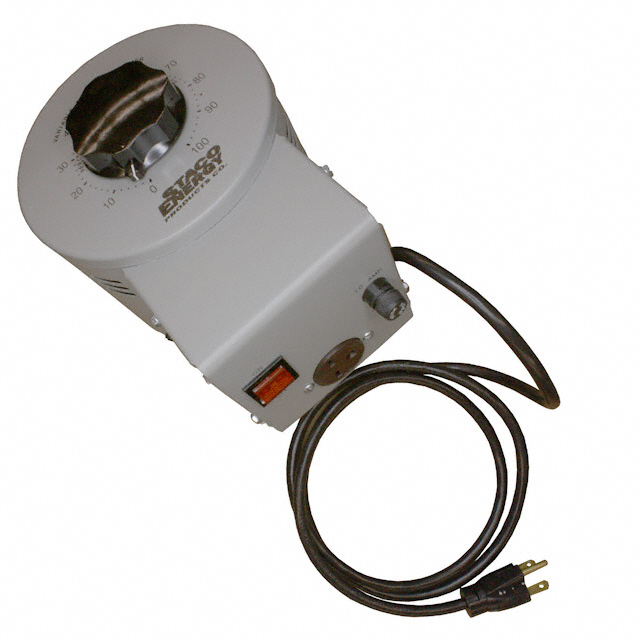

The 3PN1520B is a Variable Transformer featured with a ventilated steel case, input line cord and plug, fused NEMA rated output receptacle and an illuminated on/off switch. They are connected for output voltage increase with a clockwise rotation and the dials are graduated from 0-100% of the voltage setting. For application flexibility, two field modification kits have been added. The 3PN-SK kit provides an adjustable voltage stop for 3PN1500 series.
