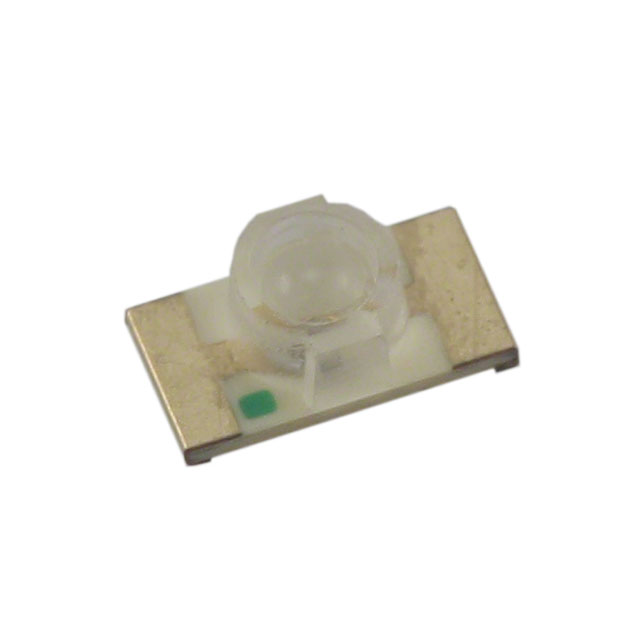

LED YELLOW CLEAR CHIP SMD

APTL3216SYCK

Active

Kingbright

LED YELLOW CLEAR CHIP SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

APTL3216 Series

Yellow 590nm LED Indication - Discrete 2V 1206 (3216 Metric)

Technical Specifications

Parameters and characteristics for this part

Specification	APTL3216SYCK

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max)	1.1 mm
Lens Color	Colorless
Lens Diameter	1.6 mm
Lens Style	Round, Flat Top
Lens Transparency	Clear
Millicandela Rating	350 mcd
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric)
Package Name	Chip LED
Size / Dimension Length	3.2 mm
Size / Dimension Width	1.6 mm
Viewing Angle	70 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	590 nm
Wavelength - Peak	590 nm

APTL3216 Series

Part	Lens Transparency	Mounting Type	Package Name	Wavelength - Peak	Size / Dimension Width	Size / Dimension Length	Lens Color	Lens Style	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Current - Test	Package / Case	Viewing Angle	Lens Diameter	Height (Max)	Color	Millicandela Rating	Configuration
Kingbright APTL3216SURCK-01	Clear	Surface Mount	1206	645 nm	1.6 mm	3.2 mm	Colorless	Domed Top Round	1.95 V	630 nm	20 mA	1206 (3216 Metric)	80 °	1.1 mm	1.2 mm	Red	230 mcd
Kingbright APTL3216SURCK	Clear	Surface Mount	Chip LED	645 nm	1.6 mm	3.2 mm	Colorless	Flat Top Round	1.95 V	630 nm	20 mA	1206 (3216 Metric)	70 °	1.6 mm	1.1 mm	Red	230 mcd	Standard
Kingbright APTL3216ZGCK	Clear	Surface Mount	2-SMD	515 nm	1.6 mm	3.2 mm	Colorless	Irregular	3.3 V	525 nm	20 mA	1206 (3016 Metric) 1206 (3216 Metric)	80 °		1.1 mm	Green	1000 mcd	Standard
Kingbright APTL3216SYCK	Clear	Surface Mount	Chip LED	590 nm	1.6 mm	3.2 mm	Colorless	Flat Top Round	2 V	590 nm	20 mA	1206 (3216 Metric)	70 °	1.6 mm	1.1 mm	Yellow	350 mcd	Standard
Kingbright APTL3216ZGC	Clear	Surface Mount	Chip LED	515 nm	1.6 mm	3.2 mm	Colorless	Flat Top Round	3.3 V	525 nm	20 mA	1206 (3216 Metric)	70 °	1.6 mm	1.1 mm	Green	1100 mcd	Standard
Kingbright APTL3216ZGCK-01	Clear	Surface Mount	1206	515 nm	1.6 mm	3.2 mm	Colorless	Domed Top Round	3.3 V	525 nm	20 mA	1206 (3216 Metric)	80 °	1.1 mm	1.2 mm	Green	1000 mcd
Kingbright APTL3216QBC/D	Clear	Surface Mount	Chip LED	460 nm	1.6 mm	3.2 mm	Colorless	Flat Top Round	3.3 V	465 nm	20 mA	1206 (3216 Metric)	70 °	1.6 mm	1.1 mm	Blue	250 mcd	Standard
Kingbright APTL3216CGCK-01	Clear	Surface Mount	1206	574 nm	1.6 mm	3.2 mm	Colorless	Domed Top Round	2.1 V	570 nm	20 mA	1206 (3216 Metric)	80 °	1.1 mm	1.2 mm	Green	100 mcd
Kingbright APTL3216SECK-01	Clear	Surface Mount	1206	610 nm	1.6 mm	3.2 mm	Colorless	Domed Top Round	2.1 V	605 nm	20 mA	1206 (3216 Metric)	80 °	1.1 mm	1.2 mm	Orange	350 mcd
Kingbright APTL3216PBC/A	Clear	Surface Mount	Chip LED	468 nm	1.6 mm	3.2 mm	Colorless	Flat Top Round	3.2 V	470 nm	20 mA	1206 (3216 Metric)	70 °	1.6 mm	1.1 mm	Blue	200 mcd	Standard
